Views: 22 Author: Site Editor Publish Time: 2023-07-11 Origin: Site

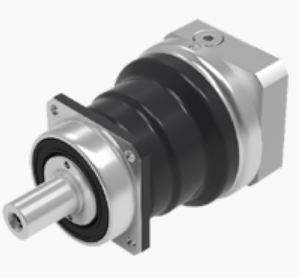

High torque gearbox
Output shaft with or without key, with spline (DIN 5480) or hollow shaft
Ratio 3 to 100
High torque gearbox
Special design for continuous (S1) or cyclic (S5) duty operation
Steel housing/aluminum, aluminum black anodized motor adapter flange
Steel output shaft with or without key, with spline (DIN5480) or hollow shaft
Helical gear design
Nominal torques:
T2N : 24 Nm - 4.290 Nm
Ratios
1-stage : 3 / 4 / 5 / 7 / 10
2-stage : 16 / 20 / 25 / 28 / 35 / 40 / 50 / 70 / 100
Low backlash
1-stage : ≤ 3 arcmin
2-stage : ≤ 4 arcmin
High efficiency
1-stage : ≥ 97%
2-stage : ≥ 94%
Easy mount
Low noise
Compact structure
Sizes available: MF060 / MF075 / MF100 / MF140 / MF180 / MF210 / MF240
