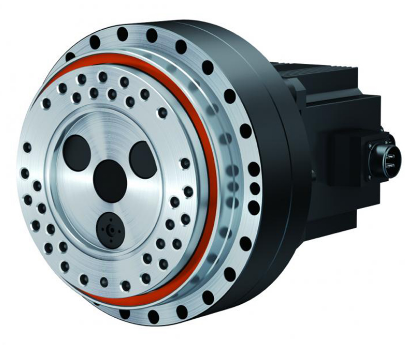

Introducing the “AF-N Actuator”, a compact actuator model directly connected to a servo motor. This product inherits the characteristics of the “Precision Gear RV™” which are high precision, high rigidity, and high reliability. By directly connecting to a servo motor, it achieves a compact drive unit. Additionally, it eliminates the need for designing and assembling servo motors and gearboxes, providing ease of use. The AF-N Actuator comes with a servo motor, has less than 1 arc.min of backlash and lost motion, and is grease-sealed. It has been used in various applications such as palletizing equipment, assembly lines, stacker cranes, and pipe bending machines. The product is available in different models with varying output power, reduction ratio, and torque.
The Actuator AF-N is a compact actuator model that is directly connected to a servo motor. It inherits the features of the Precision Gear RV™, which are high precision, high rigidity, and high reliability. By directly connecting the servo motor, a compact driving unit is realized. In addition, the design and assembly of the servo motor and the reduction gear can be integrated, providing ease of use.
Equipped with a servo motor
Backlash within 1 minute
Lost motion within 1 minute
Built-in spindle bearing
Grease-sealed
Used in palletizing equipment, assembly lines, stacker cranes, and pipe bending machines
Model: AF017N081 (A6_0.4kW), AF017N126 (A6_1kW), AF042N126 (A6_1.5kW), AF080N129 (A6_2kW), AF125N102 (A5_3kW), AF380N217 (A5_4kW), AF500N252 (A6_4kW)
Rated output (kW): 0.4, 1, 1.5, 2.5, 3, 4
Reduction ratio: 81, 126, 129, 102.18, 217.86, 252.33
Rated torque (N・m): 166, 412
| Model |
|---|
| AF017N081 (A6_0.4kW) |
|---|
| AF017N081 (A6_0.4kW) |
| AF017N126 (A6_1kW) |
| AF042N126 (A6_1kW) |
| AF042N126 (A6_1.5kW) |
| AF080N129 (A6_2kW) |
| AF125N102 (A5_3kW) |
| AF125N102 (A6_3kW) |
| AF380N217 (A5_4kW) |
| AF500N252 (A6_4kW) |
| w number (kw) | Ratio | Actual Ratio | Rated Torque （N・m） | Rated Output Speed （r.p.m.） | Backlash (arc.min.) | Lost Motion (arc.min.) | Torsional Regidity (Nm/arc.min.) | Moment Rejidity (Nm/arc.min.) | Allowable Moment 1 (N・m) | Allowance Thrust 1 (N) | Allowable Moment 2 (N・m) |
|---|
| 0.4 | 81 | 81 | 166 | 15 | less than 1 | less than 1 | 36 | 515 | 784 | 2,610 | 725 |
| 0.4 | 81 | 81 | 166 | 15 | less than 1 | less than 1 | 36 | 515 | 784 | 2,610 | 725 |
| 1 | 126 | 126 | 166 | 15 | less than 1 | less than 1 | 36 | 515 | 784 | 2,610 | 725 |
| 1 | 126 | 126 | 412 | 15 | less than 1 | less than 1 | 113 | 840 | 1,660 | 5,220 | 1,490 |
| 1.5 | 126 | 126 | 412 | 15 | less than 1 | less than 1 | 113 | 840 | 1,660 | 5,220 | 1,490 |
| 2.5 | 129 | 129 | 784 | 15 | less than 1 | less than 1 | 212 | 1,190 | 2,150 | 6,530 | 1,860 |
| 3 | 102.18 | 102.1764706 | 1,225 | 15 | less than 1 | less than 1 | 334 | 1,600 | 3,430 | 13,000 | 2,520 |
| 3 | 102.18 | 102.1765 | 1,225 | 15 | less than 1 | less than 1 | 334 | 1,600 | 3,430 | 13,000 | 2,520 |
| 4 | 217.86 | 217.8571429 | 3,724 | 15 | less than 1 | less than 1 | 948 | 5,200 | 7,056 | 25,000 | 4,120 |
| 4 | 252.33 | 252.3333333 | 4,900 | 15 | less than 1 | less than 1 | 1,620 | 6,850 | 11,000 | 32,000 | 7,110 |
