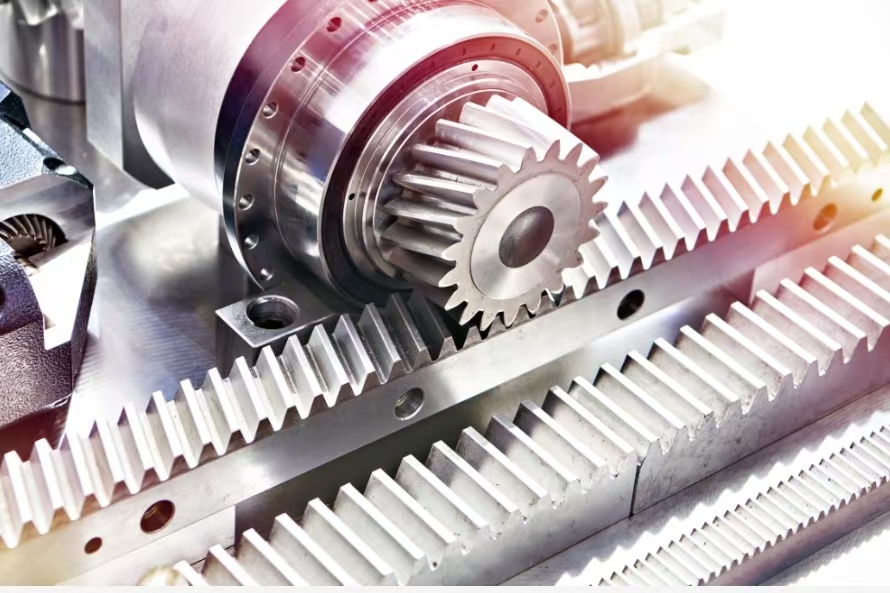

Introduction: In the world of linear motion systems, selecting the right technology is crucial to achieve precise and reliable movement. While various options exist, precision rack and pinion stands out as a superior choice for numerous applications. In this article, we will explore the advantages of precision rack and pinion systems over other linear motion technologies such as ball screws, linear motors, belt driven actuators, hydraulic actuators, and pneumatic actuators. We highlight their exceptional accuracy, efficiency, versatility, reliability, and cost-effectiveness.

High Positioinal Accuracy and Repeatability: Precision rack and pinion systems offer exceptional accuracy and repeatability. The meshing of the rack and pinion gears ensures precise linear motion, resulting in high positioning accuracy. Minimal backlash allows for reliable and repeatable movement, making precision rack and pinion systems suitable for applications that demand tight tolerances and precise positioning with medium to high payloads.

High Efficiency and Power Transmission: Precision rack and pinion systems are highly efficient in power transmission. The direct mechanical coupling between the rack and pinion enables efficient force transmission, minimizing energy losses. Rack and Pinion has higher efficiency and lower inertia than ballscrews, especially over longer travel lengths. This efficiency translates into reduced power requirements, lower operating costs, and improved overall system performance.

Versatility and Customization Options: Precision rack and pinion systems offer versatility in design and customization. They can be tailored to specific application requirements, such as different load capacities, speeds, and travel distances. The modular nature of rack and pinion systems allows for easy integration into various setups, including multi-axis configurations.

Robust and Reliable Operation: Precision rack and pinion systems are known for their robustness and reliability. The design simplicity, which drives lower part count, and durable construction ensure long-term performance- even in demanding industrial environments. With proper lubrication and maintenance, precision rack and pinion systems exhibit excellent resistance to wear, minimizing downtime and associated maintenance costs.

Cost-Effectiveness: Precision rack and pinion systems offer a cost-effective solution for linear motion. Compared to alternatives such as ball screws or linear motors, rack and pinion systems are generally more affordable in terms of initial investment and ongoing maintenance. Their reliability and long lifespan contribute to a lower total cost of ownership over the system's life cycle.

Easy Integration and Compatibility: Precision rack and pinion systems integrate seamlessly with other automation components. They can be easily combined with servo motors, stepper motors, or other motion control devices, allowing for precise synchronization and coordinated movement. Compatibility with a wide range of control systems simplifies integration into existing setups and promotes efficient system operation.

Comparison to Other Linear Motion Technologies:

Ball Screws: Precision rack and pinion systems offer comparable accuracy with lower inertia, higher efficiency, and lower cost.

Linear Motors: Rack and pinion systems provide a cost-effective alternative with simpler construction, easier installation, and lower maintenance requirements. Speed capability of rack also gets close to that of linear motors.

Belt Driven Actuators: Rack and pinion systems offer higher precision, rigidity, and resistance to belt stretching or slipping, resulting in improved accuracy and reliability.

Hydraulic and Pneumatic Actuators: Rack and pinion systems eliminate the need for complex fluid systems, offering more precise positioning, higher efficiency, and reduced maintenance.

Conclusion: Precision rack and pinion systems stand out as the superior choice for linear motion applications. With their unparalleled accuracy, efficiency, versatility, reliability, and cost-effectiveness, rack and pinion systems provide a robust solution for achieving precise and reliable linear motion. By comparing them to other linear motion technologies, it becomes clear that precision rack and pinion systems offer exceptional performance and advantages that make them the preferred choice in numerous industrial applications.
