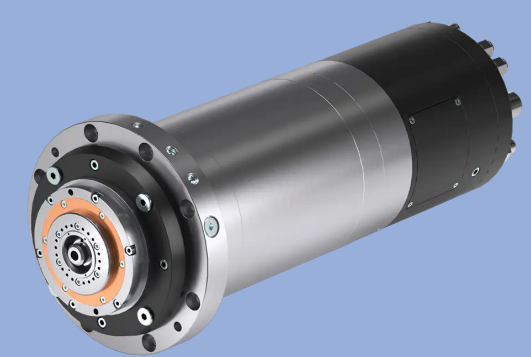

The ES3Line high-speed, compact electrospindle range is dedicated to the processing of metals.
ES332 - 13kW | |
Body diameter [mm] | Ø150 |
Max speed [rpm] (grease / air-oil) | 24.000 / 32.000 |
Motor type | Asynchronous |
Torque S1/S6 (40%) [Nm] | 10,3 / 12,4 |
Power S1/S6 (40%) [kW] | 13 / 15,6 |
Tool interface | HSK E40 / E40 |
Cooling | Liquid |
Bearings lubrication | Grease / Air Oil |
Weight [kg] | 43 |
Coolant through shaft | Yes |
Vibration sensor | No |
Elongation sensor | No |
Shaft clamping | No |
Bearing preload function | No |
Shaft kit | No |
Cooling housing | - |
