Views: 31 Author: Site Editor Publish Time: 2023-07-11 Origin: Site

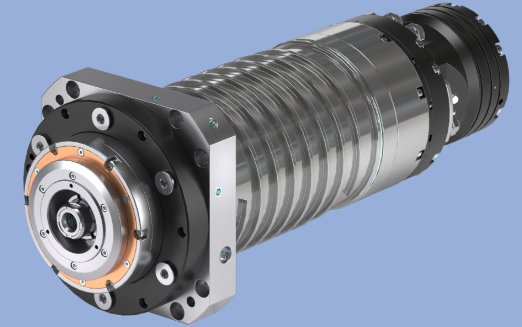

The ES5Line high-torque and high-power electrospindle range is dedicated to applications on four- and five-axis machining centres for the processing of metals.
ES505 - 25kW | ES505 - 40kW | |
Body diameter [mm] | Ø140 | Ø140 |
Max speed [rpm] (grease / air-oil) | 20.000 / 24.000 | 20.000 / 28.000 |
Motor type | Synchronous IPM | Synchronous IPM |
Torque S1/S6 (40%) [Nm] | 30 /36 | 48 / 57.5 |
Power S1/S6 (40%) [kW] | 25 / 30 | 40 / 48 |
Tool interface | HSK A63 | HSK A63 |
Cooling | Liquid | Liquid |
Bearings lubrication | Grease / Air Oil | Grease / Air Oil |
Weight [kg] | 35 | 40 |
Coolant through shaft | Yes | Yes |
Vibration sensor | Yes | Yes |
Elongation sensor | Yes | Yes |
Shaft clamping | No | No |
Bearing preload function | No | No |
Shaft kit | No | No |
Cooling housing | On request | On request |
