Views: 21 Author: Site Editor Publish Time: 2026-06-18 Origin: Site

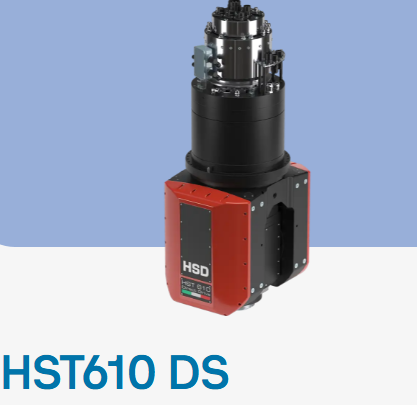

The HST Line range of two-axis heads is fitted with an HSD direct drive motor, for high speed precision machining on metals.
Motor brand | HSD Direct Drive |
A Axis Max torque [Nm] | 480 |
C Axis Max torque [Nm] | 680 |
Clamping torque Axis brakes A [Nm] | 2.000 |
Clamping torque Axis brakes C [Nm] | 2.000 |
Max. speed Axis A [° / sec] | 300 |
Max. speed Axis C [° / sec] | 300 |
Measuring System Accuracy A [arcsec] | 5 (2 on request) |
Measuring System Accuracy C [arcsec] | 4 (2 on request) |
A Axis range [°] | ±110 |
C Axis range [°] | ±360 |
Weight [kg] | ̴ 310 |
