Panasonic servo motor MINAS A6

Servo Motor MINAS A6 Family

Panasonic AC Servo Motors achieves high speed, large torque, compactness and light weight. A rich product lineup to meet manufacturing needs. Flexible support for various system configurations.

50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz

*1 Middle and high inertia types only

*2 MHMF200 W

*3 MHMD200 W

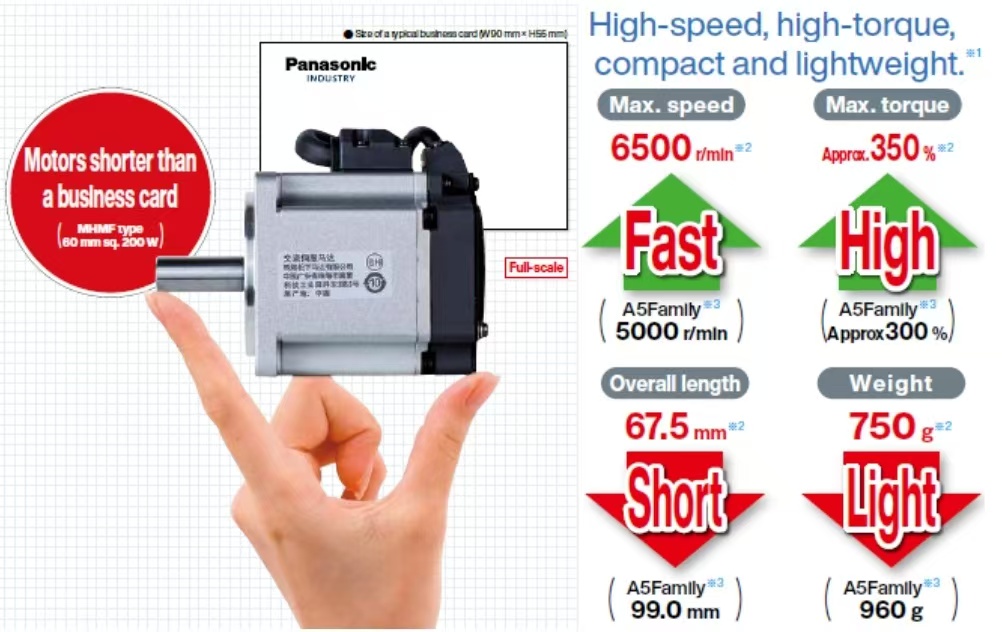

 Significantly extended running range by the highest speed and high torque in the industry's highest class.

Enhanced position detecting resolution enables smoother and more precise positioning.

Low vibrations High speed and high precision positioning

*4 Incremental encoder

 Easy and quick setting, shortening conventional settling time by approx. 64%*1.

Realized 3.2 kHz frequency response to improve productivity.

Reduced maintenance work and trouble.

The geared servomotor lineup is also added.

 Multifunctional software for quick adjustment support

Reduced the battery for the absolute encoder by installing the power generating element in the motor.

In addition to improving maintainability, we support the construction of ecological and economical industrial machines and systems.
