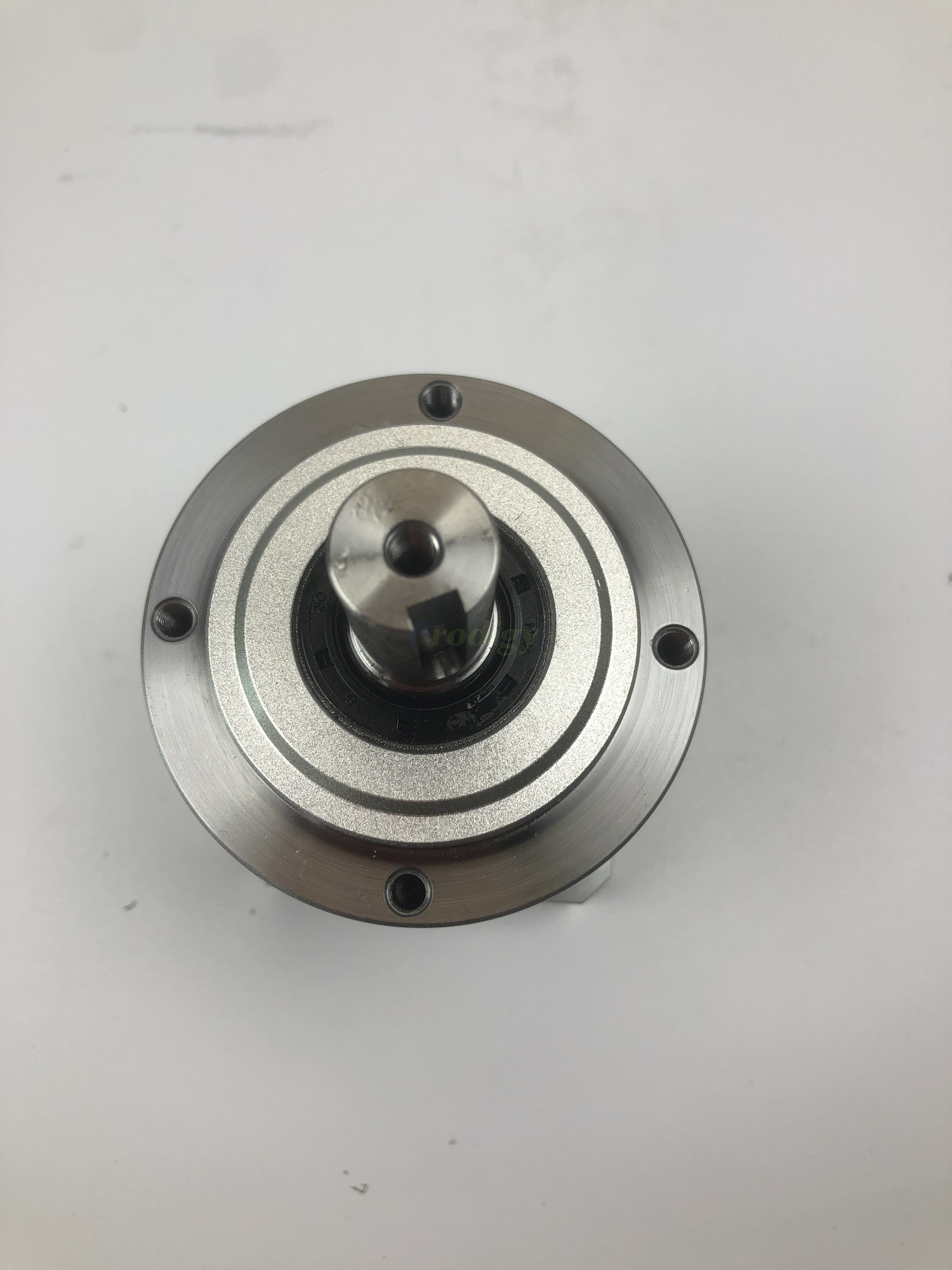

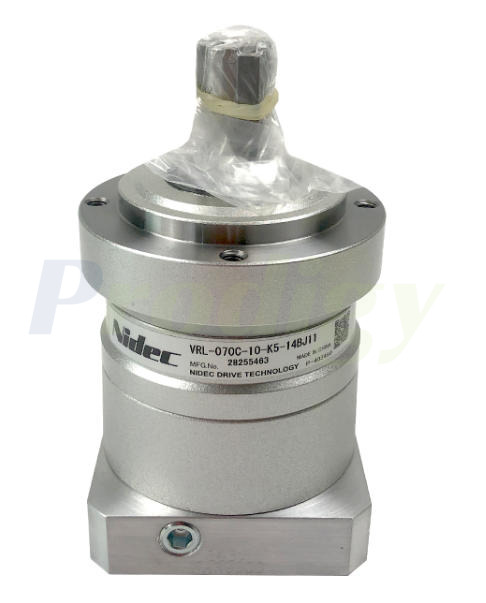

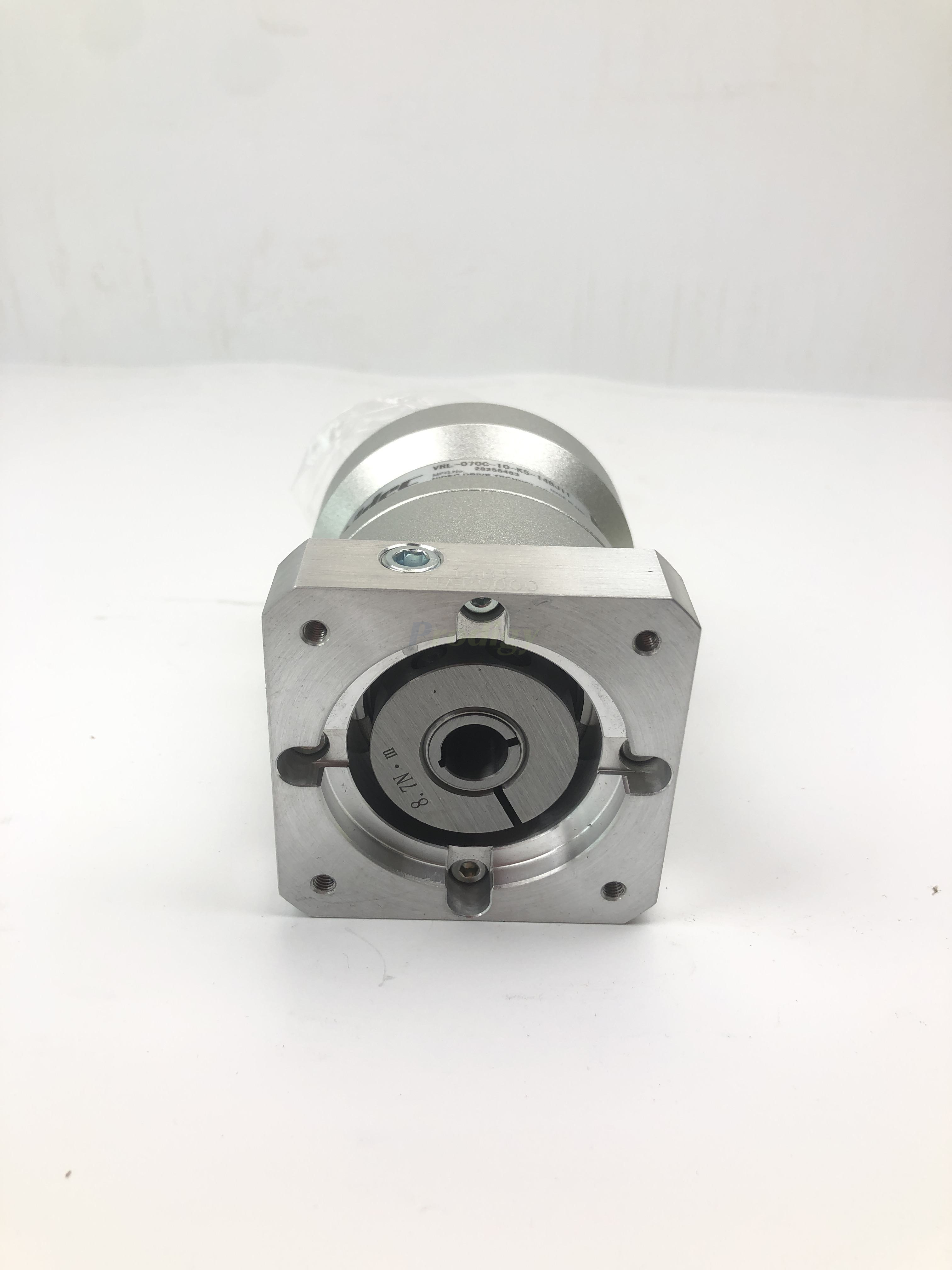

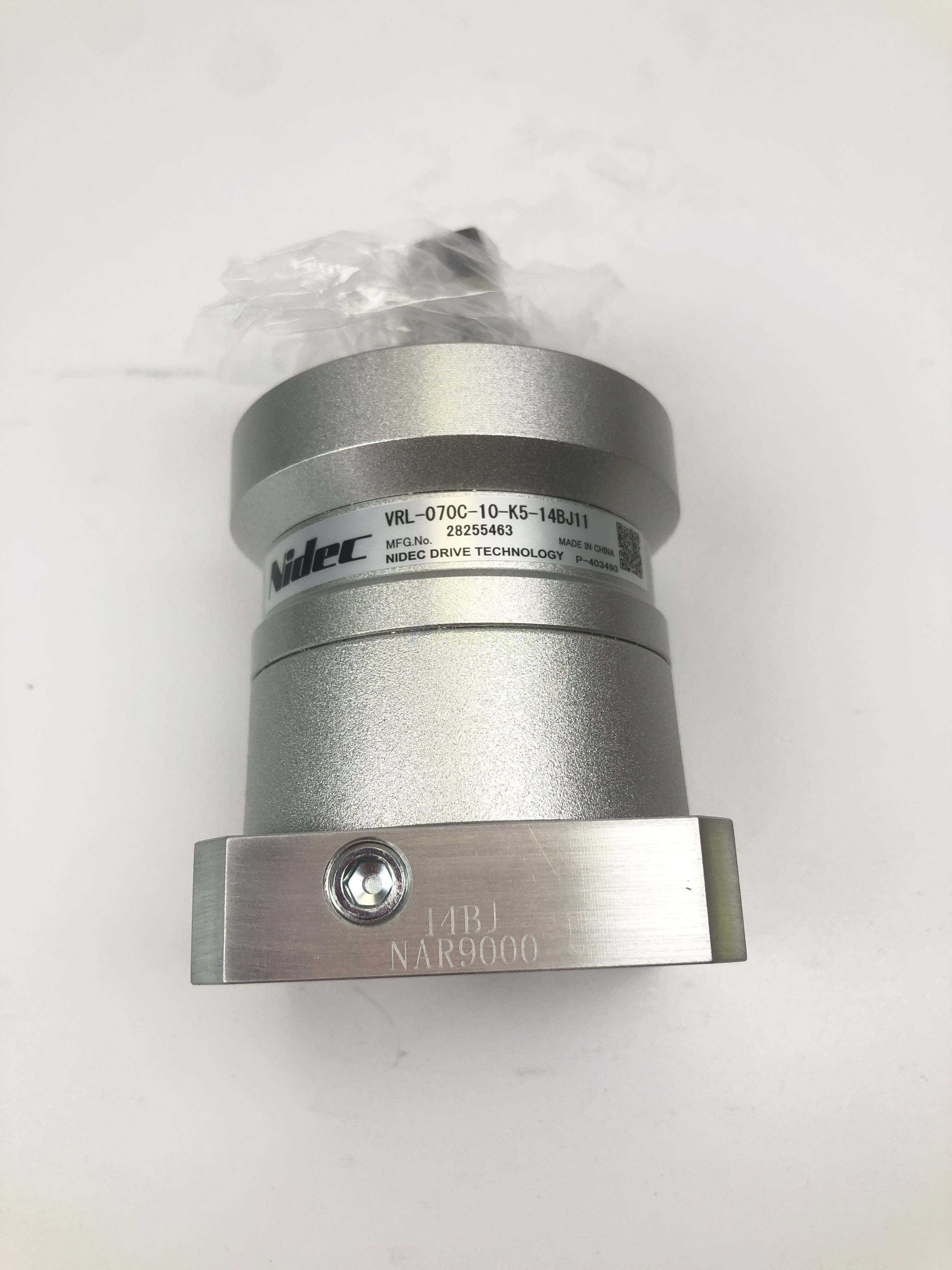

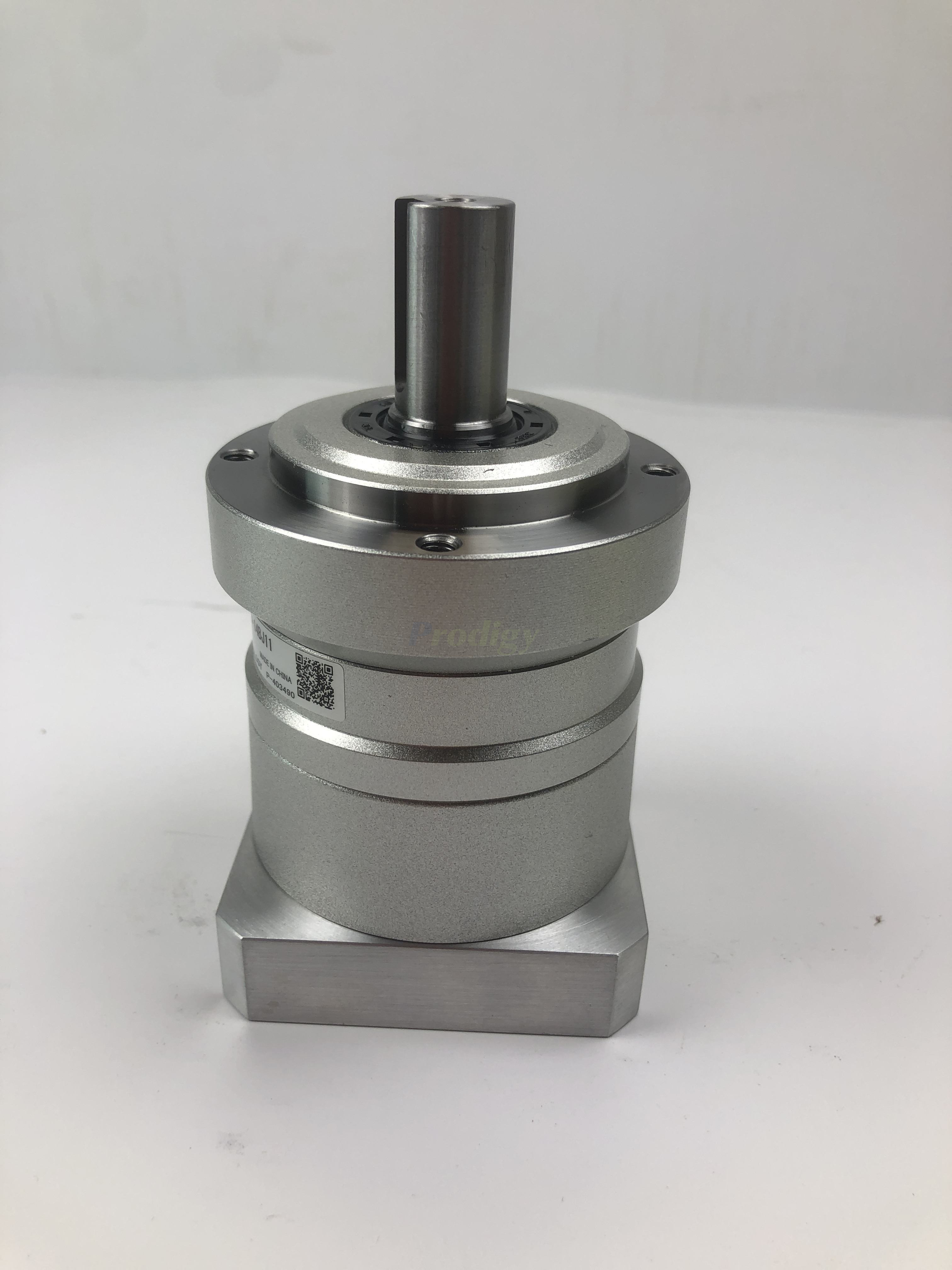

Shimpo Nidec VRL Series Reducer Gear Box

Double Reduction Planetary Gear Reducer: Ideal for agricultural applications with high torque output.
Compact Design: Saves space and reduces installation complexity.
Dustproof Construction: Protects internal components from environmental debris.
Customizable Options: Available in various VRB series models for specific needs.
Long Warranty Period: Ensures reliability and peace of mind with a 1-year guarante
Availability:
Quantity:
  • NIDEC Gearbox ABLE reducers VRL series

  • NIDEC ABLE

Key attributes

spare parts type
Reducer
Wavelength
-
Accessory Type
Reducer
key selling points
Long Service Life
warranty
1 Year
condition
New
place of origin
Japan
weight (kg)
5
brand name
Shimpo/Nidec
Ratio
10
Backlash
5 arc-min
Allowable nominal torque
18 Nm
Allowable maximum torque
35 Nm
Allowable average input speed
3000 rpm
Allowable maximum input speed
6000 rpm
Allowable radial load
640 N
Allowable axial load
530 N
Moment of inertia
0.17 kg cm2


Specification
VRTZ-090L-7-F3-002-28 (19)
for Yaskawa motor 750w/850w, ratio1:7
VRT-090C-5-F3-19HB19
for Yaskawa motor 850W, ratio 1:5
VRT-090C-5-F3-28HB22
for Yaskawa motor 1.3kW, ratio 1:5
VRT-090C-5-F3-28HB24
for Yaskawa motor 1.8kW, ratio 1:5
VRT-090C-7-F3-19HB19
for Yaskawa motor 850W, ratio 1:7
VRT-090C-7-F3-28HB22
for Yaskawa motor 1.3kW, ratio 1:7
VRT-090C-7-F3-28HB24
for Yaskawa motor 1.8kW, ratio 1:7
VRT-110C-7-F3-28HB24
for Yaskawa motor 1.8kW
VRT-110C-7-F3-38KA35
for Yaskawa motor 2.9kW
VRT-110C-10-F3-38KA35
for Yaskawa motor 2.9kW
VRSF-35C-400
Delivery time of 45 days
