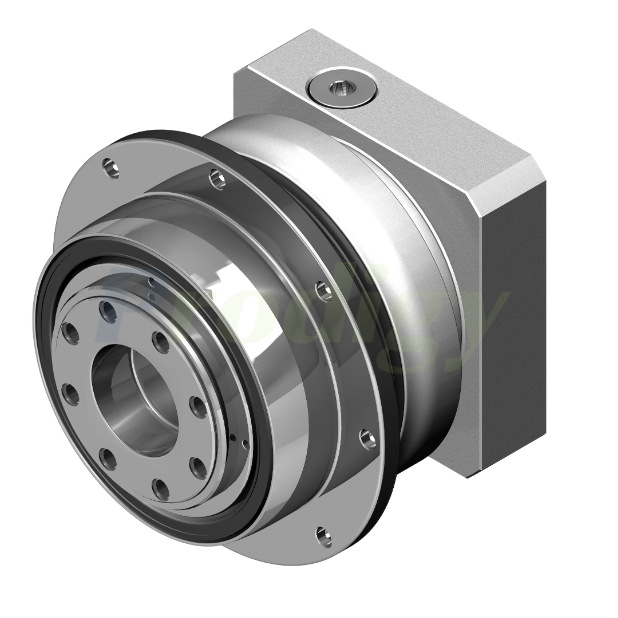

Apex Dynamics AH Series Planetary Gearbox

AH-Series High Precision Planetary Gearboxes
The AH Series is a high precision rotary flange style planetary gearbox with less than 1 arc minute backlash. Case Hardened and ground gearing provide high accuracy and high wear resistance for the gear train. Compact structure provides high torsional rigidity, taper roller bearing support provides high axial and moment load capacity. NEW larger sizes available - AH 285 / AH355 / AH450
Availability:
Quantity:
Inquire Add to Basket

  • AH064 / AH090 / AH110 / AH140 / AH200 / AH255 / AH285 / AH355 / AH450

  • APEX

AH-Series High Precision Planetary Gearboxes

The AH Series is a high precision rotary flange style planetary gearbox with less than 1 arc minute backlash. Case Hardened and ground gearing provide high accuracy and high wear resistance for the gear train. Compact structure provides high torsional rigidity, taper roller bearing support provides high axial and moment load capacity. NEW larger sizes available - AH 285 / AH355 / AH450

Output torque

  • T2N : Up to 10,900 Nm

Frame Sizes (mm)

  • 64/90/110/140/200/255/285/355/450

Ratios

  • 1-stage : 4 / 5 / 7 / 10

  • 2-stage : 16/20/21/25/28/31/35/40/46/50/61/70/91/100

Lowest Backlash - High Wear Resistance

  • 1-stage : ≤1 arcmin

  • 2-stage : ≤1 arcmin

High Efficiency

  • 1-stage : ≧ 97%

  • 2-stage : ≧ 94%

Easy mount
Low Noise
Compact structure


AH-Eng_页面_02AH-Eng_页面_04AH-Eng_页面_07AH-Eng_页面_08AH-Eng_页面_10AH-Eng_页面_09AH-Eng_页面_11AH-Eng_页面_12
