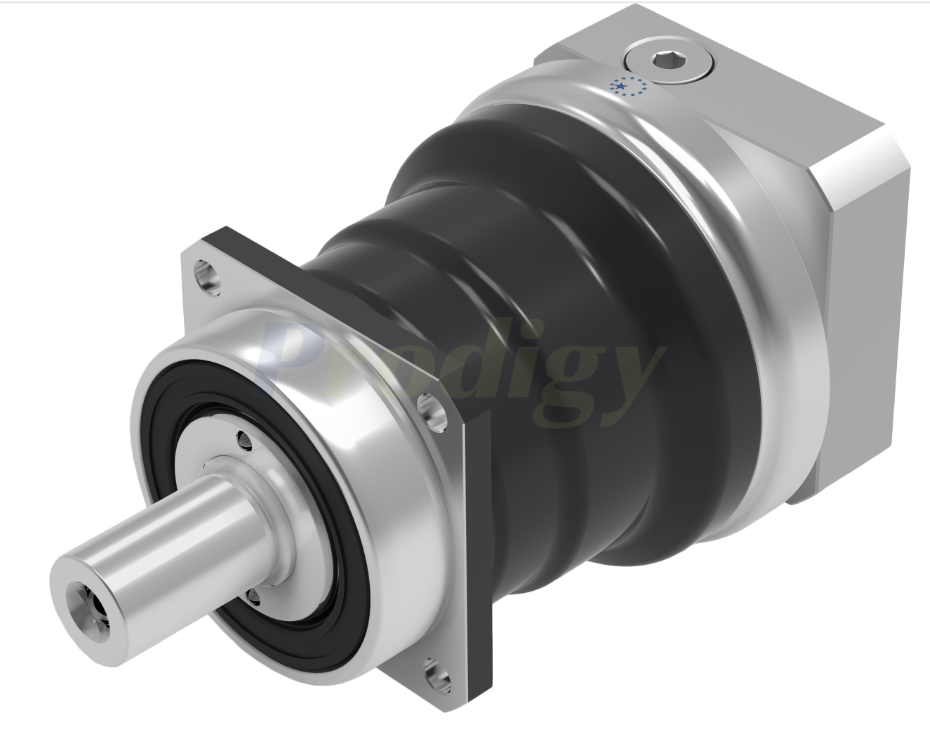

Apex Dynamics MF Series High Precision Planetary Gearboxes

MF-Series High Precision Planetary Gearboxes
The Apex MF series is an alloy steel high precision in line servo gearbox. Based on the AFH series, the MF series provides similar performance with slightly less accuracy; With 100% optimized helical case hardened and ground planet gears provide high torque capability, highest precision and increased wear resistance for high cycle rates. High Axial and Radial Loads provided by High Precision Taper Roller Bearings.
Availability:
Quantity:
  • Apex Dynamics MF Series Planetary Gearbox

  • APEX

  • Output torque
    T2N : 24 Nm - 4290 Nm

  • Ratios
    1-stage : 3 / 4 / 5 / 6 / 7 / 10
    2-stage : 16 / 20 / 25 / 28 / 35 / 40 / 50 / 70 / 100
    60 / 70 / 80 / 90 / 100

  • Low backlash
    1-stage : ≤3 arcmin
    2-stage : 4≤arcmin

  • High efficiency
    1-stage : ≧ 97%
    2-stage : ≧ 94%

  • Easy mount

  • Low Noise

  • Compact structure
