Apex Dynamics PEII/PEIIR/PEII/PEIIR/PGII/PGIIR/ PGII/PGIIRSeries Planetary Gearbox

Share to:

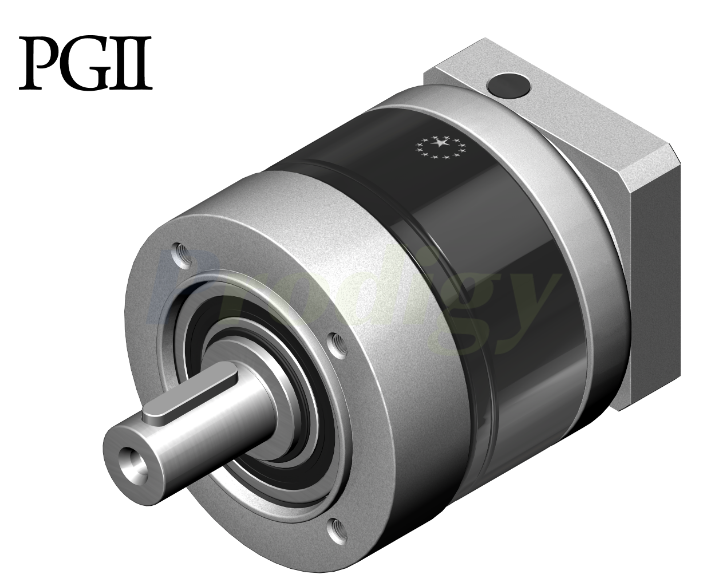

Apex PGII Series Planetary Gearbox

Name: Apex PGII Series Planetary Gearbox
Brand: APEX
Rating: 5.0 (72 reviews)

PGII-Series High Precision Planetary Gearboxes
The PII series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PGII features an industry standard metric c-face output flange, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies.

Availability:

Quantity:



Inquire Add to Basket

Model:
Apex PGII Series
Brand:
APEX

Product Description

PGII-Series High Precision Planetary Gearboxes

The PII series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PGII features an industry standard metric c-face output flange, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies.

Output torque
T2N : 4.3 Nm - 178 Nm
Ratios
1-stage : 3/4/5/7/10
2-stage : 15/16/20/25/30/35/40/50/70/100
Low backlash
1-stage : ≤6,7 or 8 arcmin
2-stage : ≤8,9 or 10 arcmin
high efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low Noise
Compact structure

PII&PIIR-Eng_页面_03 PII&PIIR-Eng_页面_04 PII&PIIR-Eng_页面_06 PII&PIIR-Eng_页面_08 PII&PIIR-Eng_页面_11 PII&PIIR-Eng_页面_10 PII&PIIR-Eng_页面_12 PII&PIIR-Eng_页面_13
