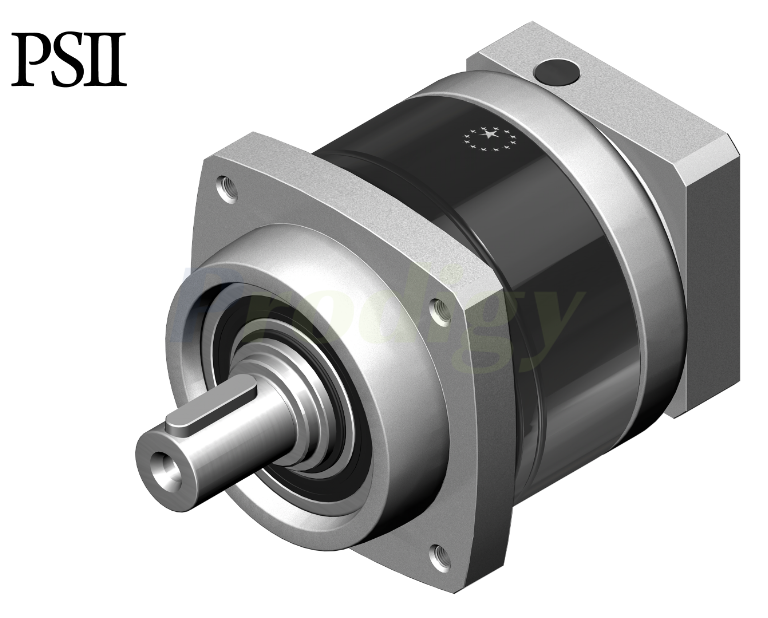

Apex PSII Series Planetary Gearbox

Name: Apex PSII Series Planetary Gearbox
Brand: APEX
Rating: 5.0 (96 reviews)

PSII-Series High Precision Planetary Gearboxes
The Apex PSII series is the newest revision of the P series. The PII series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PSII features an industry standard metric output flange, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies.

Availability:

Quantity:



Inquire Add to Basket

Model:
Apex PSII Series
Brand:
APEX

Product Description

PSII-Series High Precision Planetary Gearboxes

The Apex PSII series is the newest revision of the P series. The PII series design has been optimized for higher accuracy, lower weight and length, and greater motor mounting versatility. The PSII features an industry standard metric output flange, carbon steel and aluminum construction, precision bonded housings for greater accuracy and faster, more precise assembly, and laser welded pinions for the highest concentricity two part assemblies.

Output torque
T2N : 4.3 Nm - 178 Nm
Ratios
1-stage : 3/4/5/7/9/10
2-stage : 15/16/20/25/30/35/40/50/70/81/100
Low backlash
1-stage : ≤6,7 or 8 arcmin
2-stage : ≤8,9 or 10 arcmin
high efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low Noise
Compact structure
