YYC Guideway Rack

Guideway Rack

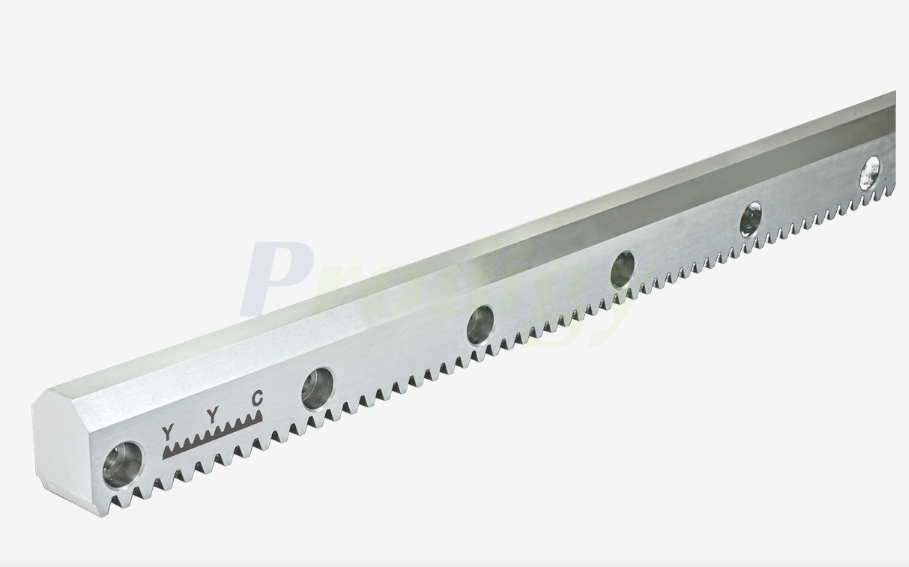

The YYC Guideway Rack integrates a precision rack and linear guideway into a single component, available in sizes 15, 20, 25, and 35 across V-type, round-type, and general profiles. Ground variants use SCM440 alloy steel, hardness HRC 53–58°, accuracy DIN 6 (Total Pitch Error Fp/1000 ≤ 0.036 mm); milled variants use S50C steel at DIN 8. Tooth profiles available in straight or helical (right-hand 19°31'42"). Suitable for laser cutting machines, CNC routers, automated material handling, and large gantry systems requiring long-travel linear motion.

Availability:

Quantity:



Inquire Add to Basket

Model:
YYC high Precision Guideway Rack
Brand:
YYC

Product Description

The YYC Guideway Rack integrates a precision rack and linear guideway into a single component, available in sizes 15, 20, 25, and 35 across V-type, round-type, and general profiles. Ground variants use SCM440 alloy steel, hardness HRC 53–58°, accuracy DIN 6 (Total Pitch Error Fp/1000 ≤ 0.036 mm); milled variants use S50C steel at DIN 8. Tooth profiles available in straight or helical (right-hand 19°31'42"). Suitable for laser cutting machines, CNC routers, automated material handling, and large gantry systems requiring long-travel linear motion.

Code	Series	Product Name	Type	Tooth Type
MSVGH-CP05010-1-DIN6	15	Guideway Rack	V Type	Straight Teeth
MSVGH-CP050-1200-1-DIN6	15	Guideway Rack	V Type	Straight Teeth
CSVM-CP050-1200-1-DIN8	15	Guideway Rack	V Type	Straight Teeth
MHVGH-015-1200-1-DIN6	15		V Type
CHVM-015-1200-1-DIN8	15		V Type
MNVGH-001	15		V Type
MNVGH-1200-1	15		V Type
CNVM-1200-1	15		V Type
MSTGH-CP05010-1-DIN6	15		Round Type
MSTGH-CP050-1200-1-DIN6	15		Round Type
CSTM-CP050-1200-1-DIN8	15		Round Type
MNTGH-001	15		Round Type
MNTGH-1200-1	15		Round Type
CNTM-1200-1	15		Round Type
MF15	15		General
EF15	15		General
MSGH-CP-L-0500201-DIN6	15		General
MHGH-L-0150201-DIN6	15		General
MSGH-CP0500203-DIN6	15、20		General
MHGH0150201-DIN6	15、20		General
CSTG-CP050-Gauge-DIN6	15、20		General
CHTG015-Gauge-DIN6	15、20		General
MSVGH-CP05010-2-DIN6	20		V Type
MSVGH-CP050-1200-2-DIN6	20		V Type
CSVM-CP050-1200-2-DIN8	20		V Type
MHVGH-015-1200-2-DIN6	20		V Type
CHVM-015-1200-2-DIN8	20		V Type
MNVGH-002	20		V Type
MNVGH-1200-2	20		V Type
CNVM-1200-2	20		V Type
MSTGH-CP05010-2-DIN6	20		Round Type
MSTGH-CP050-1200-2-DIN6	20		Round Type
CSTM-CP050-1200-2-DIN8	20		Round Type
MNTGH-002	20		Round Type
MNTGH-1200-2	20		Round Type
CNTM-1200-2	20		Round Type
MF20	20		General
EF20	20		General
MSGH-CP-L-0500202-DIN6	20		General
MHGH-L-0150202-DIN6	20		General
MSGH-CP0500203-DIN6	15、20		General
MHGH0150201-DIN6	15、20		General
FHM015018-L	15、20		General
FHM015018-R	15、20		General
CSTG-CP050-Gauge-DIN6	15、20		General
CHTG015-Gauge-DIN6	15、20		General
RH-25	25		V Type
MSVGH-CP07512-1-DIN6	25		V Type
MSVGH-CP075-1200-1-DIN6	25		V Type
CSVM-CP075-1200-1-DIN8	25		V Type
MHVGH-025-1200-1-DIN6	25		V Type
CHVM-025-1200-1-DIN8	25		V Type
MNVGH-003	25		V Type
MNVGH-1200-3	25		V Type
CNVM-1200-3	25		V Type
UR25Y	25		Round Type
MSTGH-CP07512-1-DIN6	25		Round Type
MSTGH-CP075-1200-1-DIN6	25		Round Type
CSTM-CP075-1200-1-DIN8	25		Round Type
MNTGH-003	25		Round Type
MNTGH-1200-3	25		Round Type
CNTM-1200-3	25		Round Type
MF25	25		General
EF25	25		General
MSGH-CP-L-0750201-DIN6	25		General
MHGH-L-0250161-DIN6	25		General
MSGH-CP0750202-DIN6	25		General
MHGH0250201-DIN6	25		General
FSM-CP075019	25		General
FHM025018-L	25		General
FHM025018-R	25		General
CSTG-CP075-Gauge-DIN6	25		General
CHTG025-Gauge-DIN6	25		General
UV35Y	35		V Type
UV35N	35		V Type
RH-35	35		V Type
MSVGH-CP10012-1-DIN6	35		V Type
MSVGH-CP100-1200-1-DIN6	35		V Type
CSVM-CP100-1200-1-DIN8	35		V Type
MHVGH-030-1200-1-DIN6	35		V Type
CHVM-030-1200-1-DIN8	35		V Type
MNVGH-004	35		V Type
MNVGH-1200-4	35		V Type
CNVM-1200-4	35		V Type
MSTGH-CP10012-1-DIN6	35		Round Type
MSTGH-CP100-1200-1-DIN6	35		Round Type
CSTM-CP100-1200-1-DIN8	35		Round Type
MNTGH-004	35		Round Type
MNTGH-1200-4	35		Round Type
CNTM-1200-4	35		Round Type
MF35	35		General
EF35	35		General
MSGH-CP-L-1000201-DIN6	35		General
MHGH-L-0300201-DIN6	35		General
MSGH-CP1000202-DIN6	35		General
MHGH0300201-DIN6	35		General
FSM-CP100019	35		General
FHM030018-L	35		General
FHM030018-R	35		General
CSTG-CP100-Gauge-DIN6	35		General
CHTG030-Gauge-DIN6	35		General
