Apex Dynamics AD/ADS/ADR Series Planetary Gearbox

Share to:

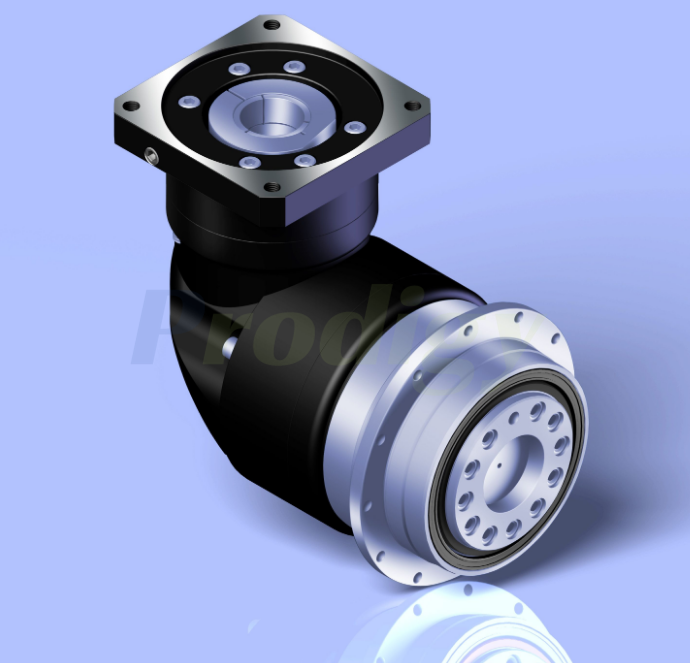

Apex Dynamics ADR Series Planetary Gearbox

Name: Apex Dynamics ADR Series Planetary Gearbox
Brand: APEX
Rating: 5.0 (60 reviews)

ADR-Series High Precision Planetary Gearboxes
The Apex ADR series has a 90° input via spiral bevel gear. It features an extremely short, rigid housing and full compatibility to any motor. A High Torque, Low backlash COMPACT Helical, One Piece Planetary Cage Design Provides the Stiffest and Most Accurate Rotating Flange Design on the Market Today. Superior Accuracy, Torsion Rididity, Moment Load Capacity.

Availability:

Quantity:



Inquire Add to Basket

Model:
Apex ADR series
Brand:
APEX

Product Description

ADR-Series High Precision Planetary Gearboxes

The Apex ADR series has a 90° input via spiral bevel gear. It features an extremely short, rigid housing and full compatibility to any motor. A High Torque, Low backlash COMPACT Helical, One Piece Planetary Cage Design Provides the Stiffest and Most Accurate Rotating Flange Design on the Market Today. Superior Accuracy, Torsion Rididity, Moment Load Capacity.

Output torque
T2N : 14 Nm - 2000 Nm
Ratios
1-stage : 4 / 5 / 7 / 10 / 14 / 20
2-stage : 20/25/35/40/50/70/100/140/200
*Only ADR047 2-stage offers 20 option.
Low backlash
1-stage : ≤2 arcmin / ≤4 arcmin / ≤6 arcmin
2-stage : ≤4 arcmin / ≤7 arcmin / ≤9 arcmin
high efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
Easy mount
Low Noise
Compact structure
