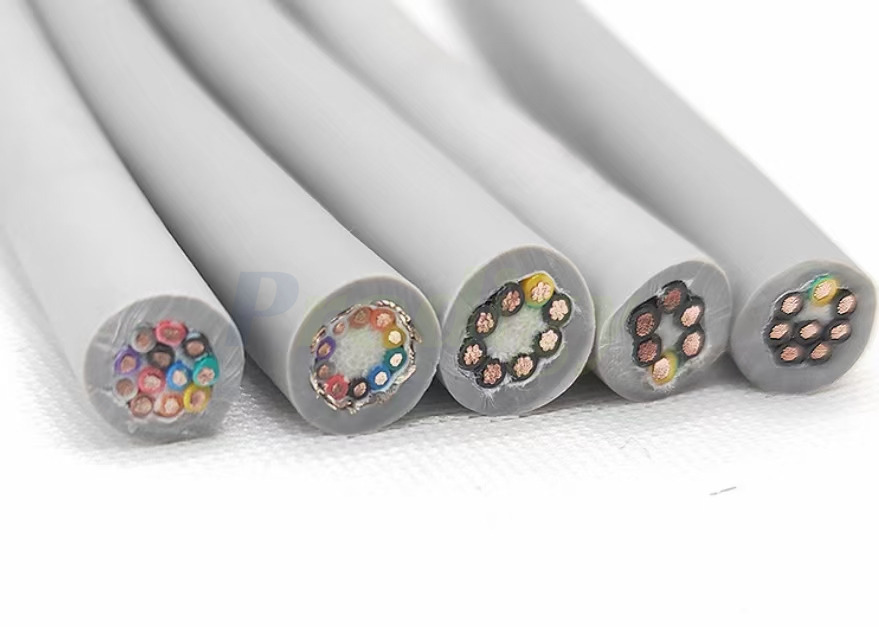

TRVV High-Flexibility Drag Chain Cable

Key Features & Benefits

• Ultra-High Flexibility & Fatigue Resistance:

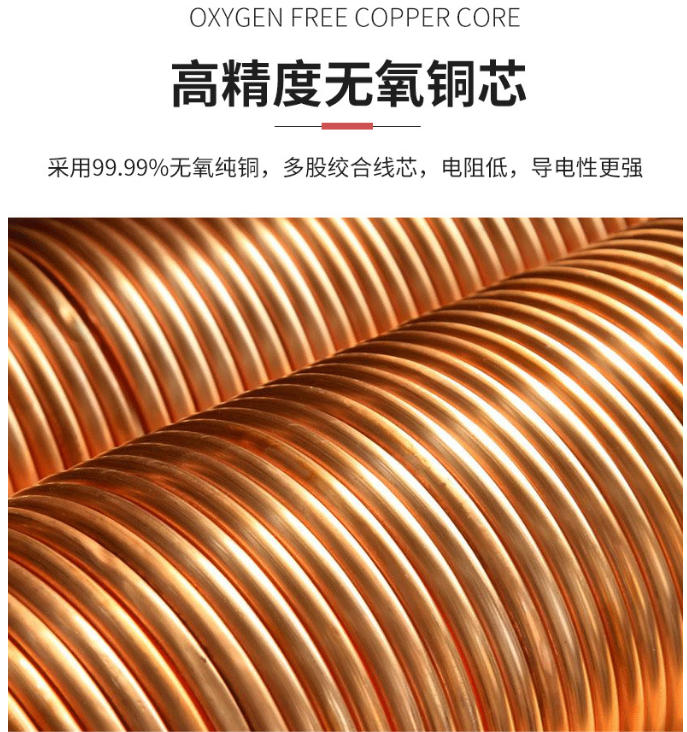

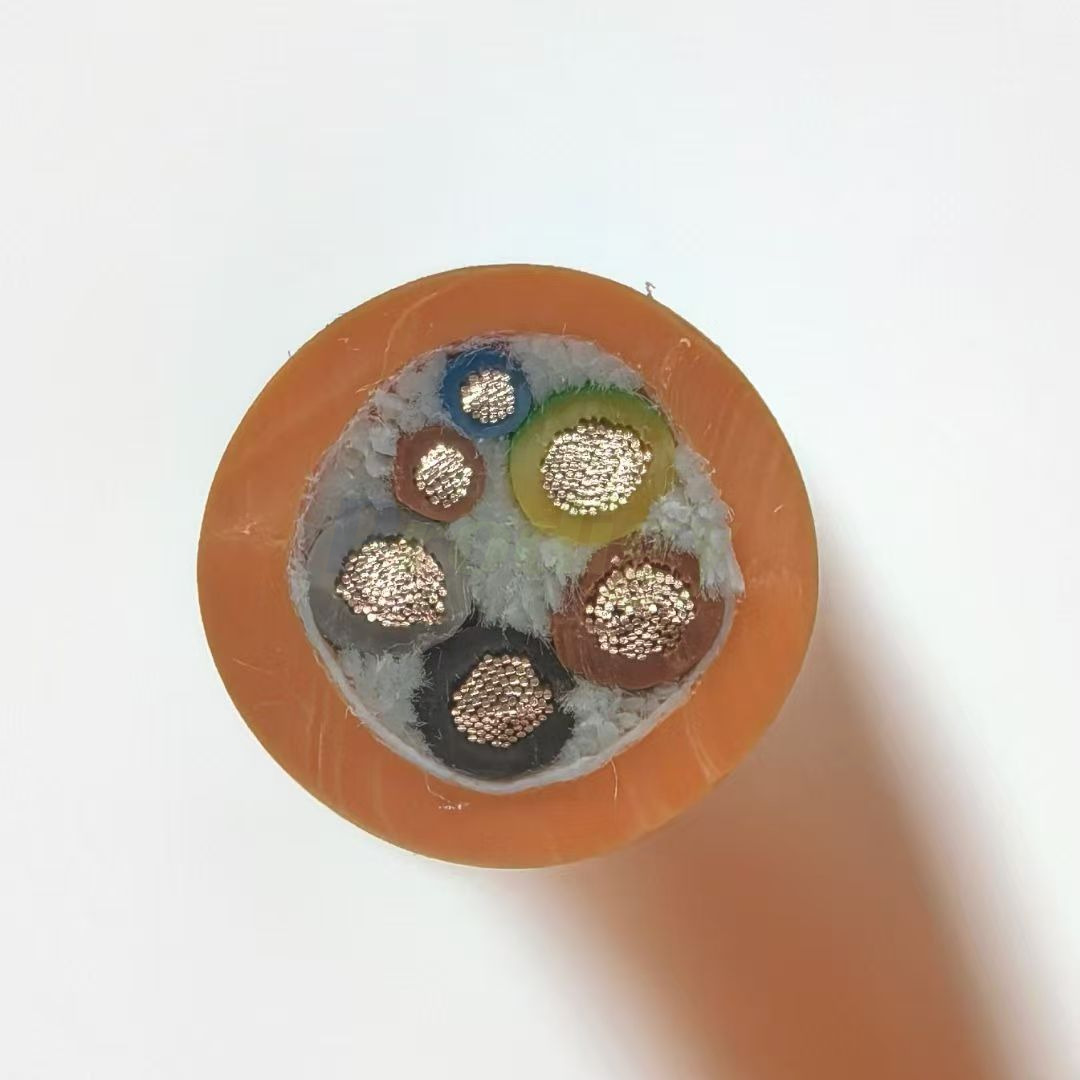

  Constructed with a Class 6 fine-stranded bare copper conductor (according to VDE 0295 / IEC 60228 standards), these cables offer exceptional softness. The optimized stranding pitch ensures a bending life of over 5 million cycles, far exceeding standard cables.

• Robust & Durable Jacket:
  The outer sheath is made from special modified materials (such as PVC, PUR, or TPU) that provide excellent resistance to abrasion, tearing, oil, and chemicals. This ensures reliable performance even in harsh industrial environments.

• Tensile Strength:

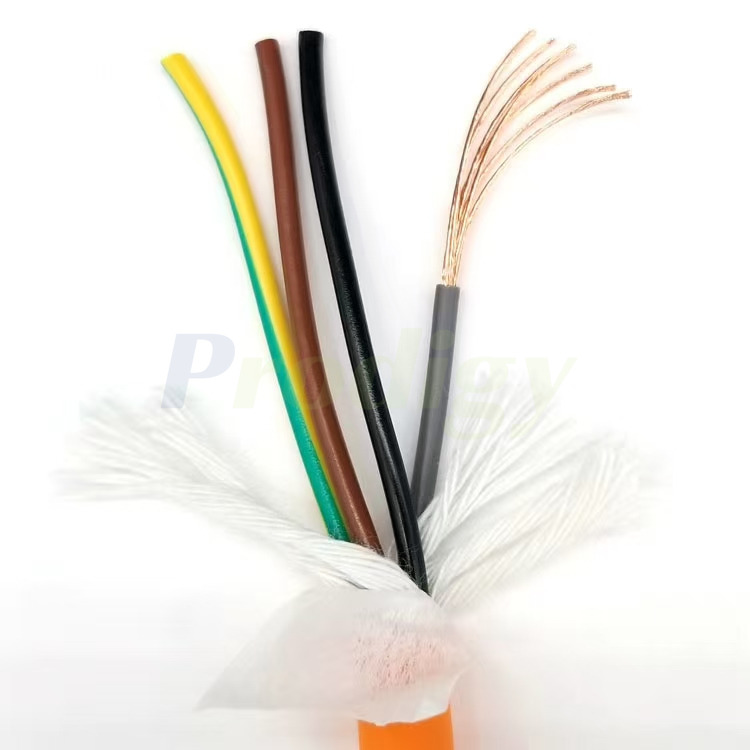

  Internal fillers (like aramid yarn or anti-tear cords) absorb tensile forces generated during rapid movement, preventing core breakage and structural deformation.

• Superior EMI Shielding (Optional):

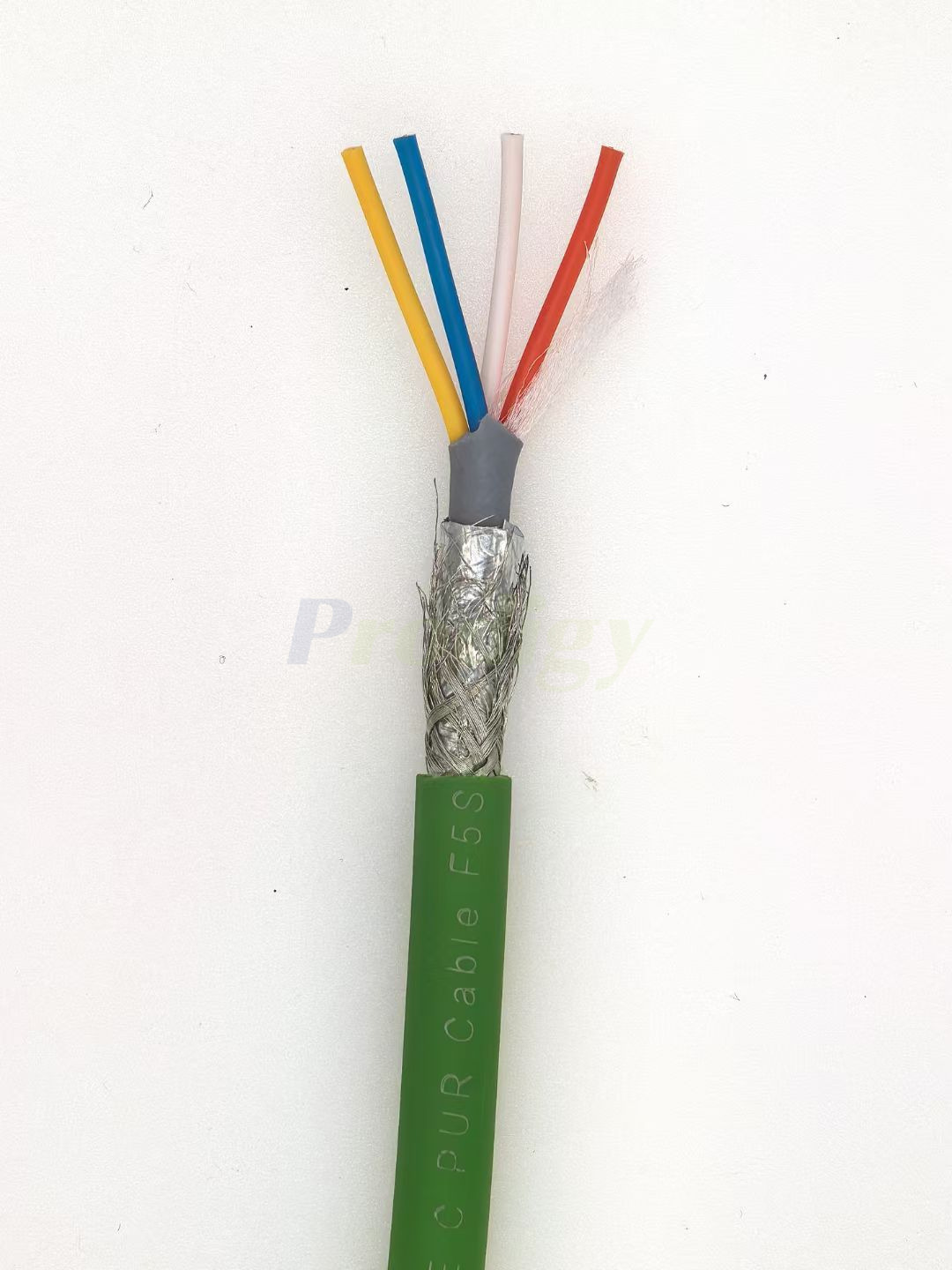

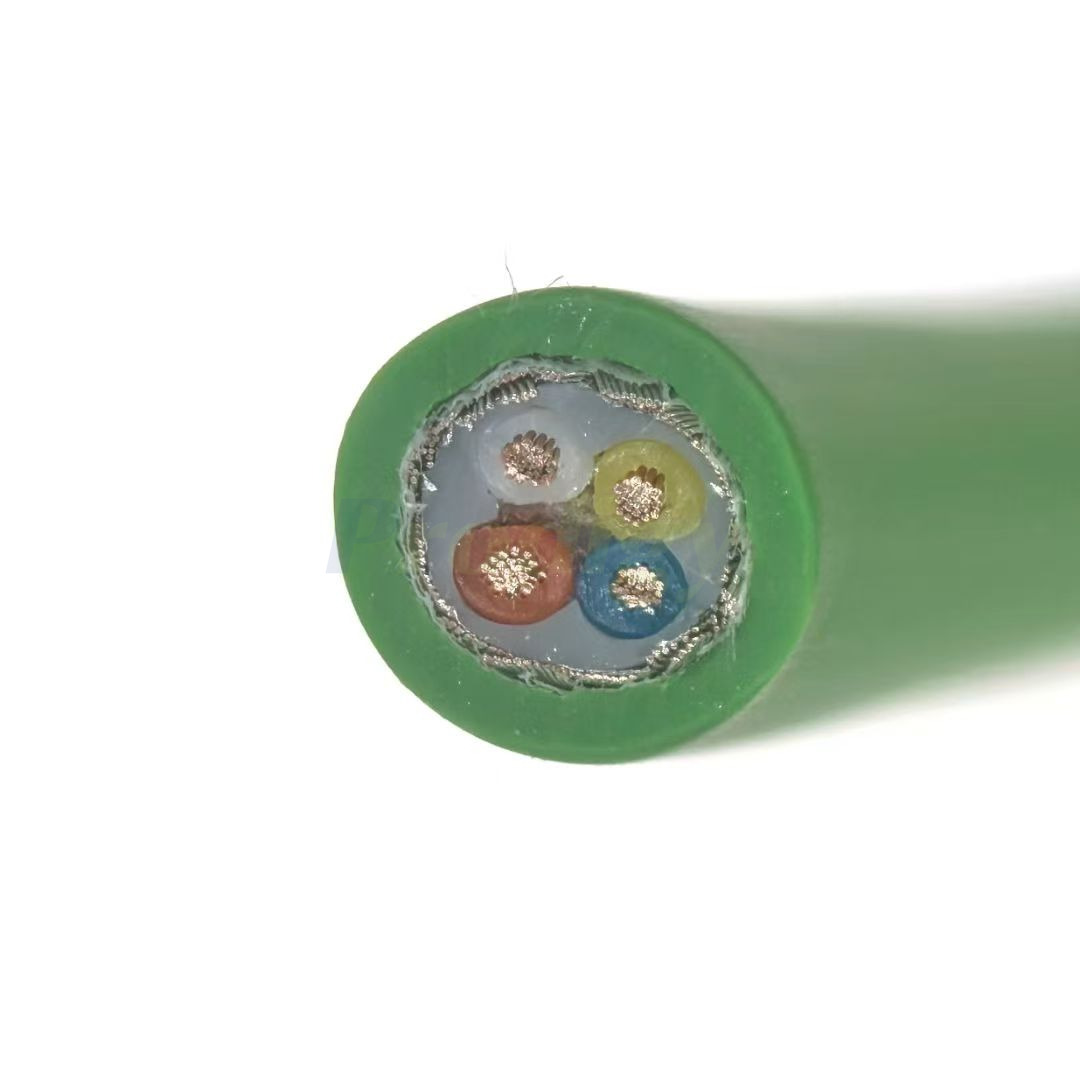

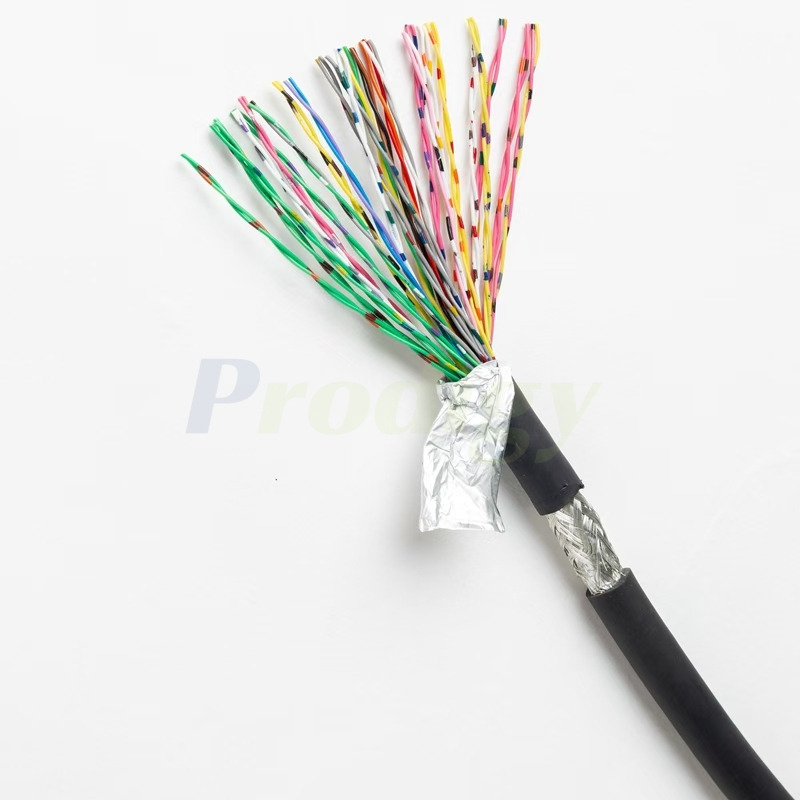

  Models like TRVVP feature a tinned copper braid shield, while TRVVSP offers double shielding (Aluminum foil + Copper braid). These designs effectively block electromagnetic interference (EMI), ensuring precise transmission of data and control signals near servo motors and frequency converters.

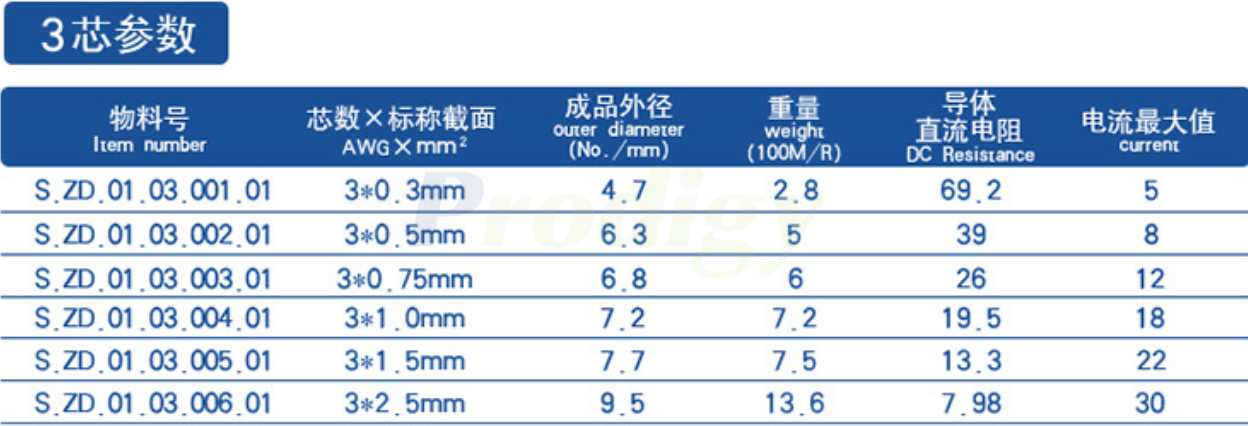

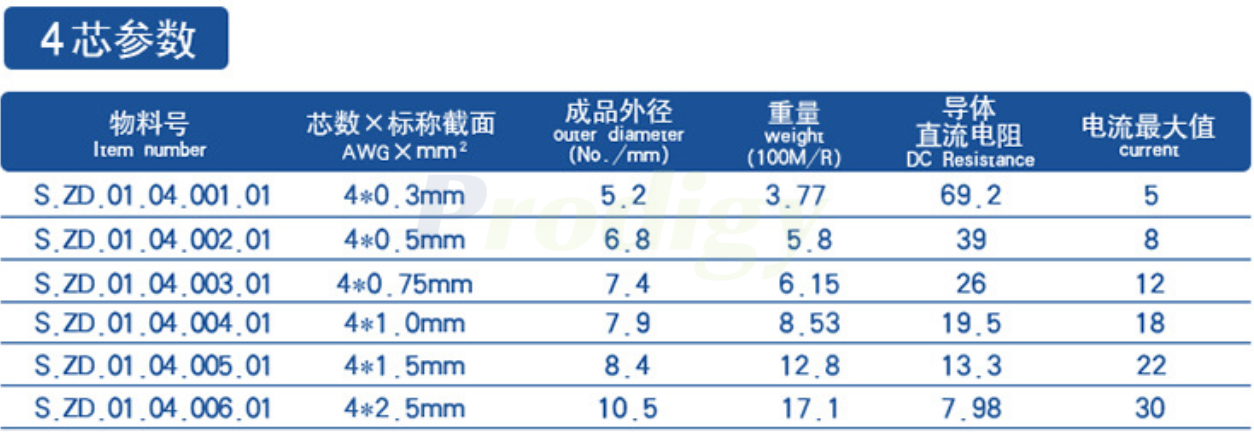

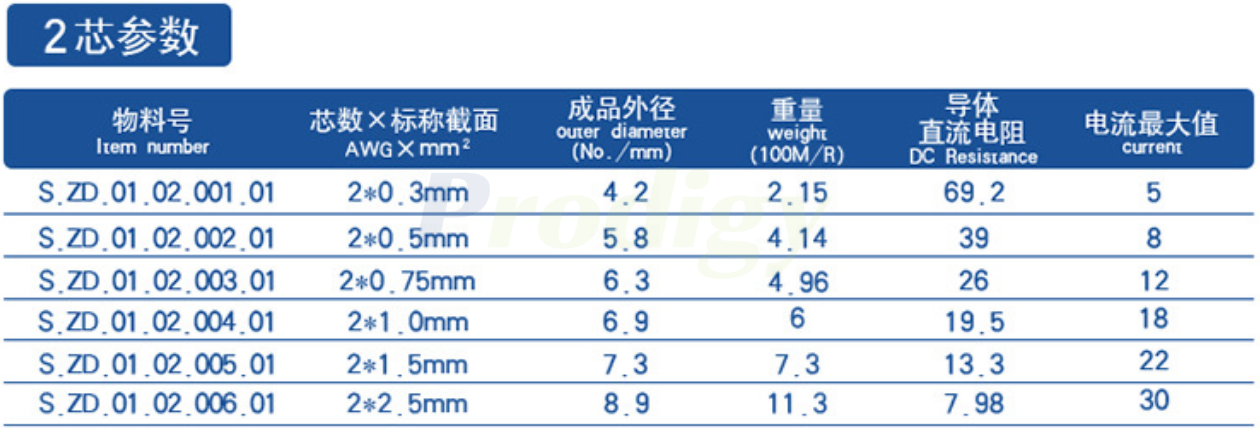

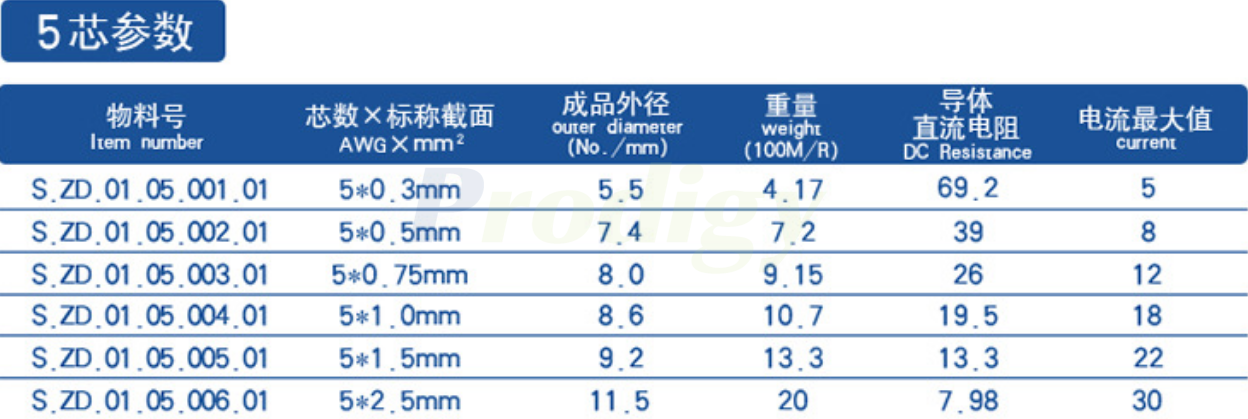

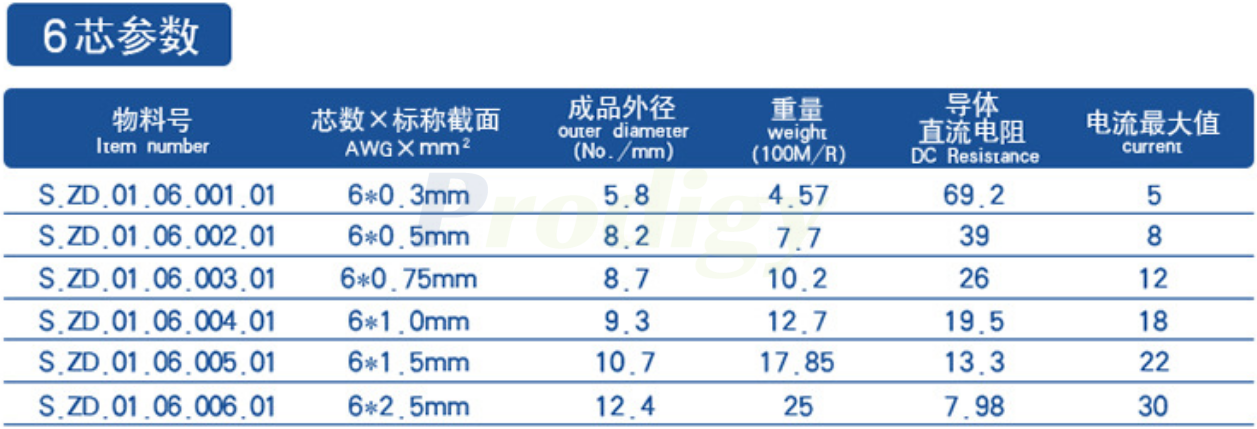

⚙️ Technical Specifications (Typical)

• Rated Voltage: 300/300V or 300/500V

• Operating Temperature: -15°C to +70°C (Mobile use); -40°C to +70°C (Fixed installation)

• Minimum Bending Radius: 7.5x Cable Outer Diameter (for moving applications)

• Common Models: TRVV (Unshielded), TRVVP (Shielded), TRVVSP (Double Shielded)
