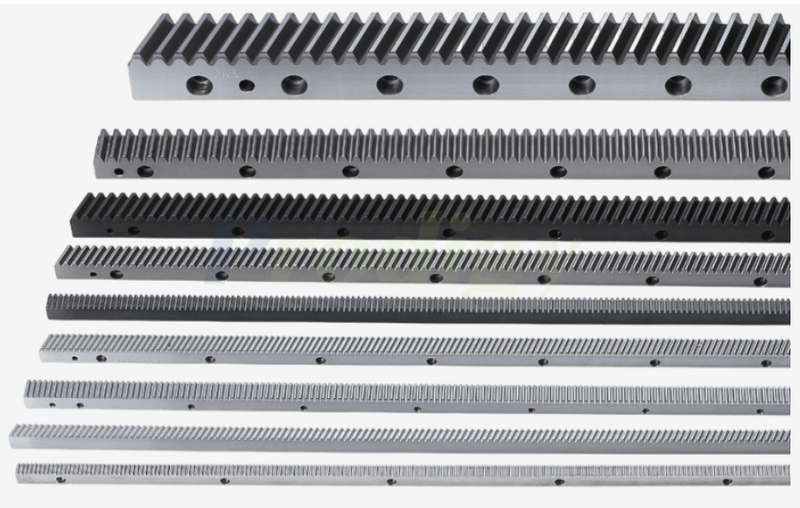

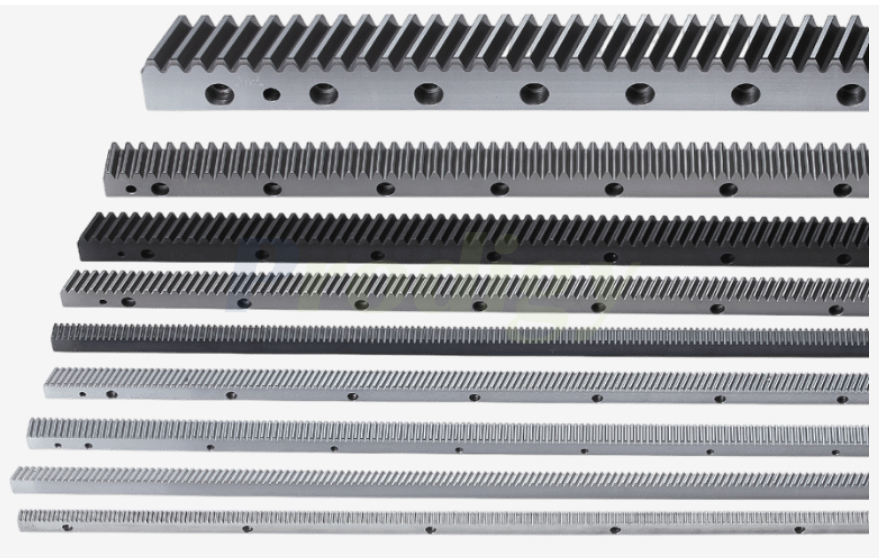

YYC Standard Rack Series

YYC Standard Rack Series integrates a wide selection of modules, tooth profiles, materials, and precision grades, providing designers with flexible and ready-to-select motion solutions.

• Module range: M1 – M10
• Tooth profile: Straight, Helical
• Heat treatment: Laser hardened, Induction hardened
• Accuracy grade: DIN 5–10
• Material options: Medium carbon steel, Alloy steel

YYC racks are engineered to suit various motion systems with different load capacities, rigidity, and speed requirements, ensuring smooth operation, stable quality, and optimal transmission performance.

Availability:

Quantity:



Inquire Add to Basket

Model:
YYC high Precision Rack
Brand:
YYC

Product Description

Code	Tooth profile	Product Code	Module (M)	Teeth Treatment	Heat Treatment	Quality(Q)	Material	Length Range(L)	Max Feed Force Range (kN)
CHTGH01505-DIN6	Helical	CHTGH	1.5	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	≦10
CHTGH01510-DIN6	Helical	CHTGH	1.5	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	≦10
CHTGH02005-DIN6	Helical	CHTGH	2	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	≦10
CHTGH02010-DIN5	Helical	CHTGH	2	Teeth Ground	Hardened	DIN 5	S50C	960-1017.88	≦10
CHTGH02010-DIN6	Helical	CHTGH	2	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	≦10
CHTGH02020-DIN6	Helical	CHTGH	2	Teeth Ground	Hardened	DIN 6	S50C	1990-2010	≦10
CHTGH02505-DIN6	Helical	CHTGH	2.5	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	10-30
CHTGH02510-DIN6	Helical	CHTGH	2.5	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	10-30
CHTGH02520-DIN6	Helical	CHTGH	2.5	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	10-30
CHTGH03005-DIN6	Helical	CHTGH	3	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	10-30
CHTGH03010-DIN5	Helical	CHTGH	3	Teeth Ground	Hardened	DIN 5	S50C	960-1017.88	10-30
CHTGH03010-DIN6	Helical	CHTGH	3	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	10-30
CHTGH03020-DIN6	Helical	CHTGH	3	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	10-30
CHTGH04005-DIN6	Helical	CHTGH	4	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	10-30
CHTGH04010-DIN6	Helical	CHTGH	4	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	10-30
CHTGH04020-DIN6	Helical	CHTGH	4	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	10-30
CHTGH05005-DIN6	Helical	CHTGH	5	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	30-50
CHTGH05010-DIN6	Helical	CHTGH	5	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	30-50
CHTGH05020-DIN6	Helical	CHTGH	5	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	30-50
CHTGH06005-DIN6	Helical	CHTGH	6	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	50-100
CHTGH06010-DIN6	Helical	CHTGH	6	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	50-100
CHTGH06020-DIN6	Helical	CHTGH	6	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	50-100
CHTGH08005-DIN6	Helical	CHTGH	8	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	＞100
CHTGH08010-DIN6	Helical	CHTGH	8	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	＞100
CHTGH08020-DIN6	Helical	CHTGH	8	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	＞100
CHTGH10005-DIN6	Helical	CHTGH	10	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	＞100
CHTGH10010-DIN6	Helical	CHTGH	10	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	＞100
CHTGH02010-DIN7	Helical	CHTGH	2	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	≦10
CHTGH02020-DIN7	Helical	CHTGH	2	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	≦10
CHTGH03010-DIN7	Helical	CHTGH	3	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	10-30
CHTGH03020-DIN7	Helical	CHTGH	3	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	10-30
CHTGH04010-DIN7	Helical	CHTGH	4	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	10-30
CHTGH04020-DIN7	Helical	CHTGH	4	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	10-30
CHTGH05010-DIN7	Helical	CHTGH	5	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	30-50
CHTGH05020-DIN7	Helical	CHTGH	5	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	30-50
CHTGH06010-DIN7	Helical	CHTGH	6	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	50-100
CHTGH06020-DIN7	Helical	CHTGH	6	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	50-100
CHTM01510-DIN8	Helical	CHTM	1.5	Milled		DIN 8	S50C	960-1017.88	≦10
CHTM02010-DIN8	Helical	CHTM	2	Milled		DIN 8	S50C	960-1017.88	≦10
CHTM02020-DIN8	Helical	CHTM	2	Milled		DIN 8	S50C	1920-2035.75	≦10
CHTM03010-DIN8	Helical	CHTM	3	Milled		DIN 8	S50C	960-1017.88	≦10
CHTM03020-DIN8	Helical	CHTM	3	Milled		DIN 8	S50C	1920-2035.75	≦10
CHTM04010-DIN8	Helical	CHTM	4	Milled		DIN 8	S50C	960-1017.88	≦10
CHTM04020-DIN8	Helical	CHTM	4	Milled		DIN 8	S50C	1920-2035.75	≦10
CHTM05010-DIN8	Helical	CHTM	5	Milled		DIN 8	S50C	960-1017.88	≦10
CHTM05020-DIN8	Helical	CHTM	5	Milled		DIN 8	S50C	1920-2035.75	≦10
CHTM06010-DIN8	Helical	CHTM	6	Milled		DIN 8	S50C	960-1017.88	10-30
CHTM06020-DIN8	Helical	CHTM	6	Milled		DIN 8	S50C	1920-2035.75	10-30
CHTM08010-DIN8	Helical	CHTM	8	Milled		DIN 8	S50C	960-1017.88	10-30
CHTM08020-DIN8	Helical	CHTM	8	Milled		DIN 8	S50C	1920-2035.75	10-30
CHTM10010-DIN8	Helical	CHTM	10	Milled		DIN 8	S50C	960-1017.88	30-50
CHTMH01510-DIN10	Helical	CHTMH	1.5	Milled	Hardened	DIN 10	S50C	960-1017.88	≦10
CHTMH02010-DIN10	Helical	CHTMH	2	Milled	Hardened	DIN 10	S50C	960-1017.88	≦10
CHTMH02020-DIN10	Helical	CHTMH	2	Milled	Hardened	DIN 10	S50C	1920-2035.75	≦10
CHTMH03010-DIN10	Helical	CHTMH	3	Milled	Hardened	DIN 10	S50C	960-1017.88	10-30
CHTMH03020-DIN10	Helical	CHTMH	3	Milled	Hardened	DIN 10	S50C	1920-2035.75	10-30
CHTMH04010-DIN10	Helical	CHTMH	4	Milled	Hardened	DIN 10	S50C	960-1017.88	10-30
CHTMH04020-DIN10	Helical	CHTMH	4	Milled	Hardened	DIN 10	S50C	1920-2035.75	10-30
CHTMH05010-DIN10	Helical	CHTMH	5	Milled	Hardened	DIN 10	S50C	960-1017.88	30-50
CHTMH05020-DIN10	Helical	CHTMH	5	Milled	Hardened	DIN 10	S50C	1920-2035.75	30-50
CHTMH06010-DIN10	Helical	CHTMH	6	Milled	Hardened	DIN 10	S50C	960-1017.88	30-50
CHTMH06020-DIN10	Helical	CHTMH	6	Milled	Hardened	DIN 10	S50C	1920-2035.75	30-50
CHTMH08010-DIN10	Helical	CHTMH	8	Milled	Hardened	DIN 10	S50C	960-1017.88	50-100
CHTMH08020-DIN10	Helical	CHTMH	8	Milled	Hardened	DIN 10	S50C	1920-2035.75	50-100
CHTMH10010-DIN10	Helical	CHTMH	10	Milled	Hardened	DIN 10	S50C	960-1017.88	＞100
MHTMQ01510-DIN8	Helical	MHTMQ	1.5	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MHTMQ02010-DIN8	Helical	MHTMQ	2	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MHTMQ02020-DIN8	Helical	MHTMQ	2	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MHTMQ03010-DIN8	Helical	MHTMQ	3	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MHTMQ03020-DIN8	Helical	MHTMQ	3	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MHTMQ04010-DIN8	Helical	MHTMQ	4	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MHTMQ04020-DIN8	Helical	MHTMQ	4	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MHTMQ05010-DIN8	Helical	MHTMQ	5	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	10-30
MHTMQ05020-DIN8	Helical	MHTMQ	5	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	10-30
MHTMQ06010-DIN8	Helical	MHTMQ	6	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	10-30
MHTMQ06020-DIN8	Helical	MHTMQ	6	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	10-30
MHTMQ08010-DIN8	Helical	MHTMQ	8	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	30-50
MHTMQ08020-DIN8	Helical	MHTMQ	8	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	30-50
MHTMQ10010-DIN8	Helical	MHTMQ	10	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	30-50
CSTGH02010-DIN5	Straight	CSTGH	2	Teeth Ground	Hardened	DIN 5	S50C	960-1017.88	≦10
CSTGH03010-DIN5	Straight	CSTGH	3	Teeth Ground	Hardened	DIN 5	S50C	960-1017.88	10-30
CSTGH01505-DIN6	Straight	CSTGH	1.5	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	≦10
CSTGH01510-DIN6	Straight	CSTGH	1.5	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	≦10
CSTGH02005-DIN6	Straight	CSTGH	2	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	≦10
CSTGH02010-DIN6	Straight	CSTGH	2	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	≦10
CSTGH02020-DIN6	Straight	CSTGH	2	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	≦10
CSTGH02505-DIN6	Straight	CSTGH	2.5	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	≦10
CSTGH02510-DIN6	Straight	CSTGH	2.5	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	≦10
CSTGH02520-DIN6	Straight	CSTGH	2.5	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	≦10
CSTGH03005-DIN6	Straight	CSTGH	3	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	10-30
CSTGH03010-DIN6	Straight	CSTGH	3	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	10-30
CSTGH03020-DIN6	Straight	CSTGH	3	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	10-30
CSTGH04005-DIN6	Straight	CSTGH	4	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	10-30
CSTGH04010-DIN6	Straight	CSTGH	4	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	10-30
CSTGH04020-DIN6	Straight	CSTGH	4	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	10-30
CSTGH05005-DIN6	Straight	CSTGH	5	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	30-50
CSTGH05010-DIN6	Straight	CSTGH	5	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	30-50
CSTGH05020-DIN6	Straight	CSTGH	5	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	30-50
CSTGH06005-DIN6	Straight	CSTGH	6	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	50-100
CSTGH06010-DIN6	Straight	CSTGH	6	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	50-100
CSTGH06020-DIN6	Straight	CSTGH	6	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	50-100
CSTGH08005-DIN6	Straight	CSTGH	8	Teeth Ground	Hardened	DIN 6	S50C	480-508.94	50-100
CSTGH08010-DIN6	Straight	CSTGH	8	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	50-100
CSTGH08020-DIN6	Straight	CSTGH	8	Teeth Ground	Hardened	DIN 6	S50C	1920-2035.75	50-100
CSTGH10010-DIN6	Straight	CSTGH	10	Teeth Ground	Hardened	DIN 6	S50C	960-1017.88	＞100
CSTGH02010-DIN7	Straight	CSTGH	2	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	≦10
CSTGH02020-DIN7	Straight	CSTGH	2	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	≦10
CSTGH03010-DIN7	Straight	CSTGH	3	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	10-30
CSTGH03020-DIN7	Straight	CSTGH	3	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	10-30
CSTGH04010-DIN7	Straight	CSTGH	4	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	10-30
CSTGH04020-DIN7	Straight	CSTGH	4	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	10-30
CSTGH05010-DIN7	Straight	CSTGH	5	Teeth Ground	Hardened	DIN 7	S50C	960-1017.88	10-30
CSTGH05020-DIN7	Straight	CSTGH	5	Teeth Ground	Hardened	DIN 7	S50C	1920-2035.75	10-30
CSTM01510-DIN8	Straight	CSTM	1.5	Milled		DIN 8	S50C	960-1017.88	≦10
CSTM02010-DIN8	Straight	CSTM	2	Milled		DIN 8	S50C	960-1017.88	≦10
CSTM02020-DIN8	Straight	CSTM	2	Milled		DIN 8	S50C	1920-2035.75	≦10
CSTM03010-DIN8	Straight	CSTM	3	Milled		DIN 8	S50C	960-1017.88	≦10
CSTM03020-DIN8	Straight	CSTM	3	Milled		DIN 8	S50C	1920-2035.75	≦10
CSTM04010-DIN8	Straight	CSTM	4	Milled		DIN 8	S50C	960-1017.88	≦10
CSTM04020-DIN8	Straight	CSTM	4	Milled		DIN 8	S50C	1920-2035.75	≦10
CSTM05010-DIN8	Straight	CSTM	5	Milled		DIN 8	S50C	960-1017.88	≦10
CSTM05020-DIN8	Straight	CSTM	5	Milled		DIN 8	S50C	1920-2035.75	≦10
CSTM06010-DIN8	Straight	CSTM	6	Milled		DIN 8	S50C	960-1017.88	≦10
CSTM06020-DIN8	Straight	CSTM	6	Milled		DIN 8	S50C	1920-2035.75	≦10
CSTM08010-DIN8	Straight	CSTM	8	Milled		DIN 8	S50C	960-1017.88	10-30
CSTM08020-DIN8	Straight	CSTM	8	Milled		DIN 8	S50C	1920-2035.75	10-30
CSTM10010-DIN8	Straight	CSTM	10	Milled		DIN 8	S50C	960-1017.88	10-30
CSTMH01510-DIN10	Straight	CSTMH	1.5	Milled	Hardened	DIN 10	S50C	960-1017.88	≦10
CSTMH02010-DIN10	Straight	CSTMH	2	Milled	Hardened	DIN 10	S50C	960-1017.88	≦10
CSTMH02020-DIN10	Straight	CSTMH	2	Milled	Hardened	DIN 10	S50C	1920-2035.75	≦10
CSTMH03010-DIN10	Straight	CSTMH	3	Milled	Hardened	DIN 10	S50C	960-1017.88	≦10
CSTMH03020-DIN10	Straight	CSTMH	3	Milled	Hardened	DIN 10	S50C	1920-2035.75	≦10
CSTMH04010-DIN10	Straight	CSTMH	4	Milled	Hardened	DIN 10	S50C	960-1017.88	10-30
CSTMH04020-DIN10	Straight	CSTMH	4	Milled	Hardened	DIN 10	S50C	1920-2035.75	10-30
CSTMH05010-DIN10	Straight	CSTMH	5	Milled	Hardened	DIN 10	S50C	960-1017.88	10-30
CSTMH05020-DIN10	Straight	CSTMH	5	Milled	Hardened	DIN 10	S50C	1920-2035.75	10-30
CSTMH06010-DIN10	Straight	CSTMH	6	Milled	Hardened	DIN 10	S50C	960-1017.88	30-50
CSTMH06020-DIN10	Straight	CSTMH	6	Milled	Hardened	DIN 10	S50C	1920-2035.75	30-50
CSTMH08010-DIN10	Straight	CSTMH	8	Milled	Hardened	DIN 10	S50C	960-1017.88	50-100
CSTMH10010-DIN10	Straight	CSTMH	10	Milled	Hardened	DIN 10	S50C	960-1017.88	50-100
MSTMQ01510-DIN8	Straight	MSTMQ	1.5	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MSTMQ02010-DIN8	Straight	MSTMQ	2	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MSTMQ02020-DIN8	Straight	MSTMQ	2	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MSTMQ03010-DIN8	Straight	MSTMQ	3	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MSTMQ03020-DIN8	Straight	MSTMQ	3	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MSTMQ04010-DIN8	Straight	MSTMQ	4	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MSTMQ04020-DIN8	Straight	MSTMQ	4	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MSTMQ05010-DIN8	Straight	MSTMQ	5	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MSTMQ05020-DIN8	Straight	MSTMQ	5	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MSTMQ06010-DIN8	Straight	MSTMQ	6	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	≦10
MSTMQ06020-DIN8	Straight	MSTMQ	6	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	≦10
MSTMQ08010-DIN8	Straight	MSTMQ	8	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	10-30
MSTMQ08020-DIN8	Straight	MSTMQ	8	Milled	Quenched & Tempered	DIN 8	SCM440	1920-2035.75	10-30
MSTMQ10010-DIN8	Straight	MSTMQ	10	Milled	Quenched & Tempered	DIN 8	SCM440	960-1017.88	10-30
