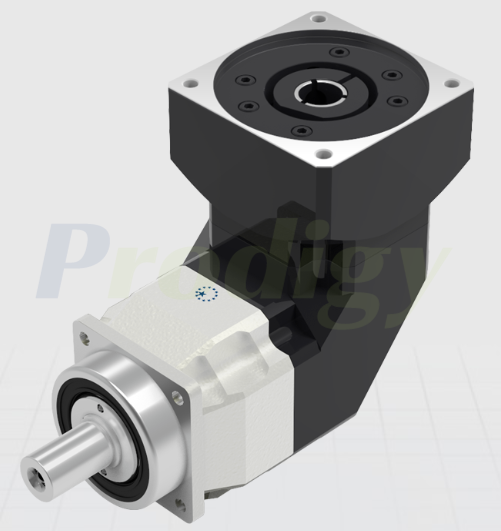

Apex AFR Series Planetary Gearbox

AFR-Series High Precision Planetary Gearboxes

The Apex AFR series has a 90° input via helical bevel gear. It features an extremely short, light yet rigid housing and full compatibility with standard motor adapters. Highest Precision, Highest Torque and Quiet Operation are provided by 100% optimized Helical Gearing. High Axial and Radial Loads provided by High Precision Taper Roller Bearings.

NEW! - Expanded Ratios -12/16/28/32/48/64 and Widened Mounting Capability with AFR100A and AFR140A

• Output torque
  T2N : 9 Nm - 2000 Nm

• Ratios
  1-stage :3/4/5/6/7/8/9/10/14/20
  2-stage :
  12/15/16/20/25/28/30/32/35/40/45/48/50/60/64/70
  80/90/100/120/140/160/180/200

  *Only AFR042 2-stage offers 15,20 option.


• Low backlash
  1-stage : ≤2arcmin / ≤4arcmin / ≤6arcmin
  2-stage : ≤4arcmin / ≤7arcmin / ≤9arcmin


• high efficiency
  1-stage :≧ 95%
  2-stage :≧ 92%


• Easy mount


• Low Noise

• Compact structure
