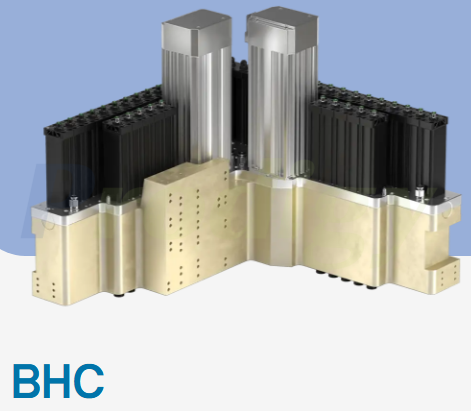

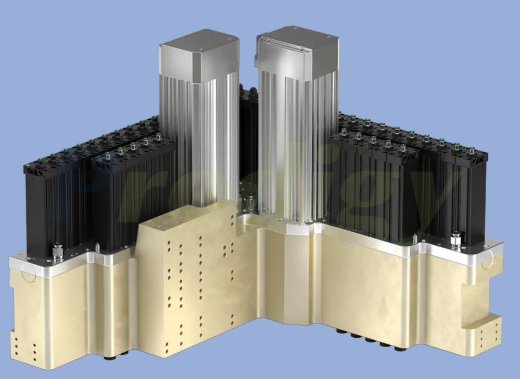

HSD BHC LINE

BHC Line
The BHC Line boring head range is dedicated to the machining of wood and composite materials, and is characterised by high drilling and cutting frequency.

Availability:

Quantity:



Inquire Add to Basket

Model:
BHC LINE
Brand:
HSD

Product Description

002-BHC LINE

Configuration (V=vertical spindles / H=Horizontal/B=Blade)	7÷42 / 0÷5 / 0
Vertical spindles: max speed [RPM]	8000
Vertical spindles: stroke [mm]	60
Spindles: pitch [mm]	32
Vertical spindles: connection	Ø10
Horizontal spindles: max speed [RPM]	-
Horizontal spindles: stroke [mm]	-
Blade: max speed [RPM]	-
Blade: stroke [mm]	-
Liquid cooling	YES
Lubrication	Automatic / Automatica
Electrovalve remote unit	Optional / Opzionale
Weight [kg]	125

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.
