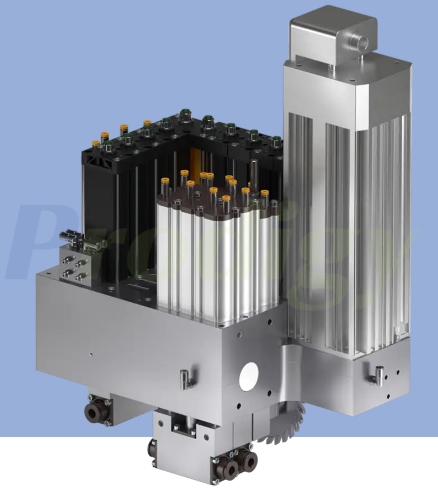

HSD BHZ LINE

BHZ Line
The BHZ Line boring head range is dedicated to the machining of wood and composite materials, and is characterised by high productivity.

Availability:

Quantity:



Inquire Add to Basket

Model:
BHZ LINE
Brand:
HSD

Product Description

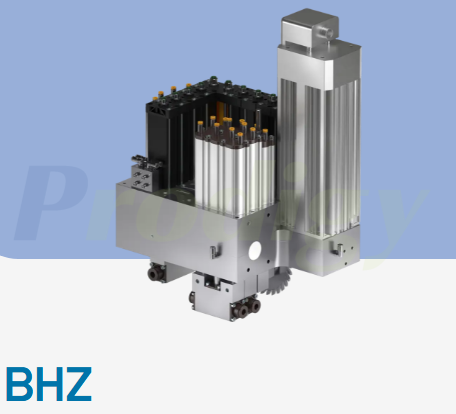

004-BHZ LINE

Configuration (V=vertical spindles / H=Horizontal/B=Blade)	4÷20 / 0÷9 / 0÷2
Vertical spindles: max speed [RPM]	6000
Vertical spindles: stroke [mm]	60 / 75
Spindles: pitch [mm]	32
Vertical spindles: connection	Ø10
Horizontal spindles: max speed [RPM]	6000
Horizontal spindles: stroke [mm]	75
Blade: max speed [RPM]	7500
Blade: stroke [mm]	60
Liquid cooling	No
Lubrication	Manual / Automatic option (Manuala / Automatica opzionale)
Electrovalve remote unit	Optional / Opzionale
Weight [kg]	60

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.
