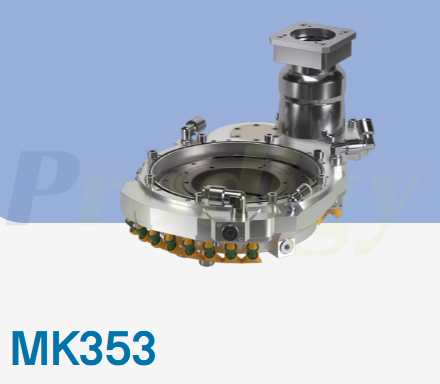

HSD C axis MK Line S

C axis
The C axis is an optional device that, when installed on the nose of the electrospindle with automatic tool change, adds an extra axis to the whole machine to increase the range of possible machining operations.
MK Line S
The MKLine S C-axis range, fitted with an integrated external tool cooling system, stands out for its extremely easy control and is dedicated to the machining of glass and stone.

Availability:

Quantity:



Inquire Add to Basket

Model:
MK353
Brand:
HSD

Product Description

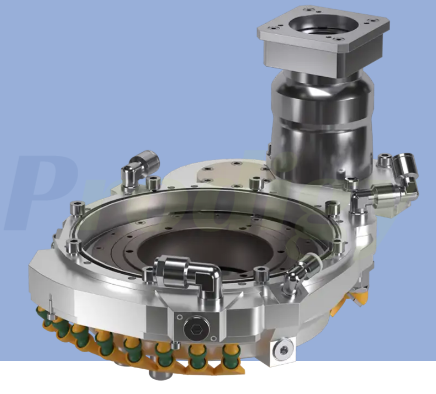

004- mk line c

Direct Drive	No
Servo/motor: brand	-*
Servo/motor: supplied	No
Reduction ratio	100 / 200
Fluidic outlets: n°	15
Rated output speed [rpm]	17
Max Output Speed [rpm]	30
Max output acceleration [round/sec²]	1**
Weight [kg]	15

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.
