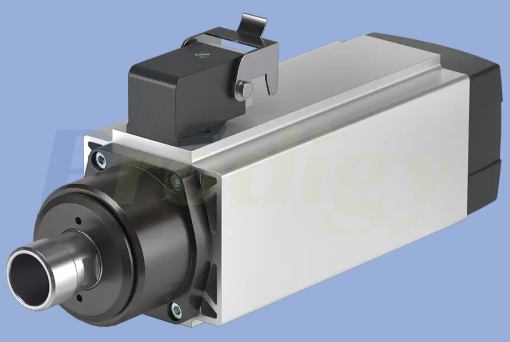

HSD Electrospindles MTC MT Line: MT1055-090

MT Line
The MT Line electrospindle range, dedicated to the machining of wood and composite materials, is fitted with an ER coupling and is available with an electric fan and a keyed fan.

Availability:

Quantity:



Inquire Add to Basket

Model:
MT1055-090
Brand:
HSD

Product Description

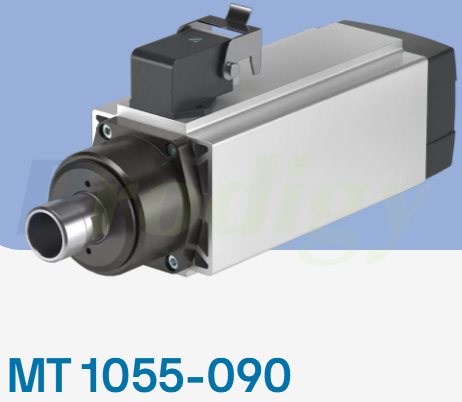

001-MT1055-090

	MT 1055 - 1kW	MTR 1055 - 1kW
Body diameter [mm]	□ 70x71.5	□ 70x71.5
Max speed [rpm]	24000	24000
Torque S1/S6 (40%) [Nm]	0.53 / 0.69	0.53 / 0.69
Power S1/S6 (40%) [kW]	1 / 3	1 / 3
Rated voltage [V]	220 / 380	220 / 380
Tool interface	ER20	HSK C32
Cooling	Shaft driven fan (Ventola calettata su albero)	Shaft driven fan (Ventola calettata su albero)
Cooling housing	3.5	3.5

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.

003-hsd_1 005-hsd_1 004-hsd_1 006-hsd_1 007-hsd_1
