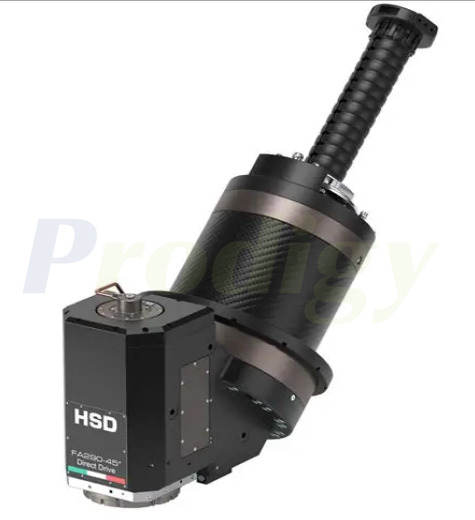

HSD FA Line

FA Line
The FA Line range of single-axis heads is fitted with an HSD direct drive motor for high precision and is dedicated to the undercut milling of metals

Availability:

Quantity:



Inquire Add to Basket

Model:
FA290 FA290 45°
Brand:
HSD

Product Description

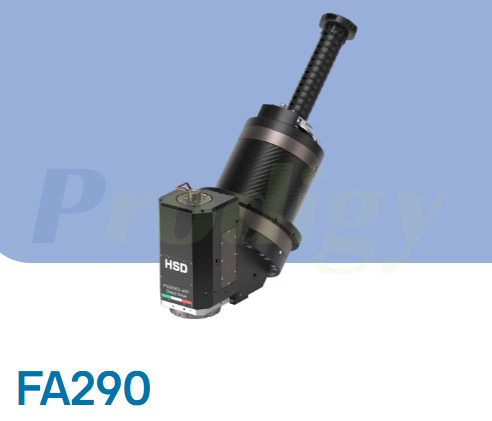

002-HSD-FA290

Motor brand	HSD Direct Drive
A Axis Max torque [Nm]	/
C Axis Max torque [Nm]	750
Clamping torque Axis brakes A [Nm]	/
Clamping torque Axis brakes C [Nm]	4.000
Max. speed Axis A [° / sec]	/
Max. speed Axis C [° / sec]	240
Measuring System Accuracy A [arcsec]	/
Measuring System Accuracy C [arcsec]	5
A Axis range [°]	/
C Axis range [°]	±120
Weight [kg]	̴ 260

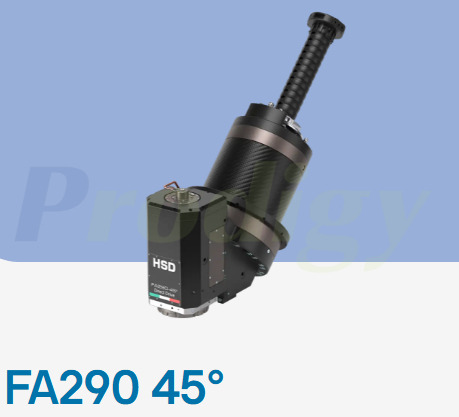

003-HSD-FA290

Motor brand	HSD Direct Drive
A Axis Max torque [Nm]	/
C Axis Max torque [Nm]	1679
Clamping torque Axis brakes A [Nm]	/
Clamping torque Axis brakes C [Nm]	4.000
Max. speed Axis A [° / sec]	/
Max. speed Axis C [° / sec]	480
Measuring System Accuracy A [arcsec]	/
Measuring System Accuracy C [arcsec]	2
A Axis range [°]	/
C Axis range [°]	'-30/+180
Weight [kg]	̴ 300

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.

003-hsd_1 005-hsd_1 004-hsd_1 006-hsd_1 007-hsd_1
