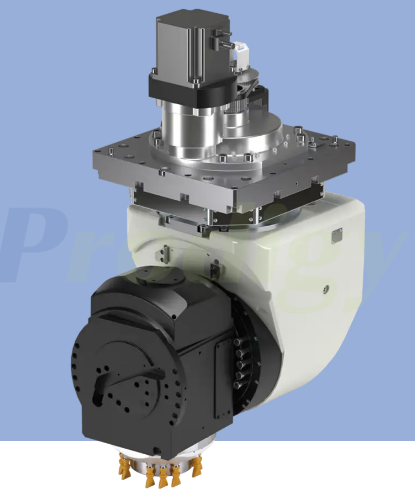

HSD HS778 MV

HS Line S
The HS Line S range of two-axis heads is characterised by highly flexible use and by a high torque for applications on glass and stone.

Availability:

Quantity:



Inquire Add to Basket

Model:
HSD HS778 MV
Brand:
HSD

Product Description

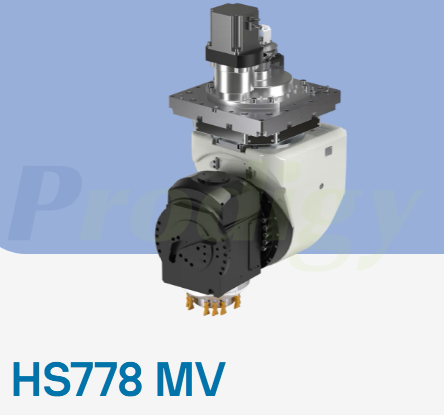

003-HSD-HS778 MV

Motor brand	Siemens, Fanuc, Yaskawa
A Axis Max torque [Nm]	2.400
C Axis Max torque [Nm]	2.400
Clamping torque Axis brakes A [Nm]	2.000
Clamping torque Axis brakes C [Nm]	3.000
Max. speed Axis A [° / sec]	85
Max. speed Axis C [° / sec]	115
Measuring System Accuracy A [arcsec]	60 (20*)
Measuring System Accuracy C [arcsec]	60 (20*)
A Axis range [°]	±100
C Axis range [°]	±262
Weight [kg]	̴ 350

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.
