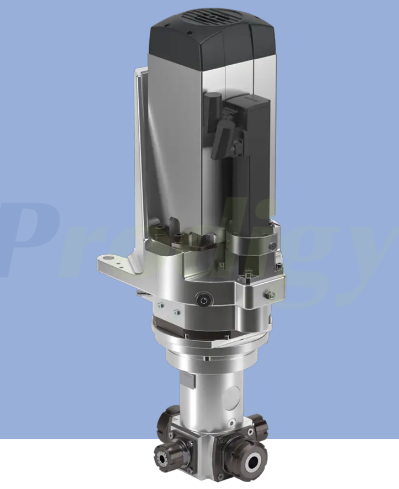

HSD Multifunction unit MF Line

Multifunction unit
The multifunction unit is a flexible, cost-effective solution that offers the performance of an AT + a “C axis” + an “aggregate”, all in a single product optimised for the type of machining operation to be carried out. HSD can supply it with different types of aggregate.
MF Line
The MF Line multifunctional unit range is dedicated to the machining of wood and composite materials, and is characterised by high productivity.

Availability:

Quantity:



Inquire Add to Basket

Model:
MF
Brand:
HSD

Product Description

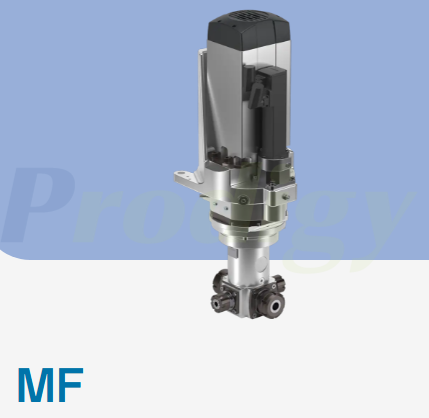

001-MF Line

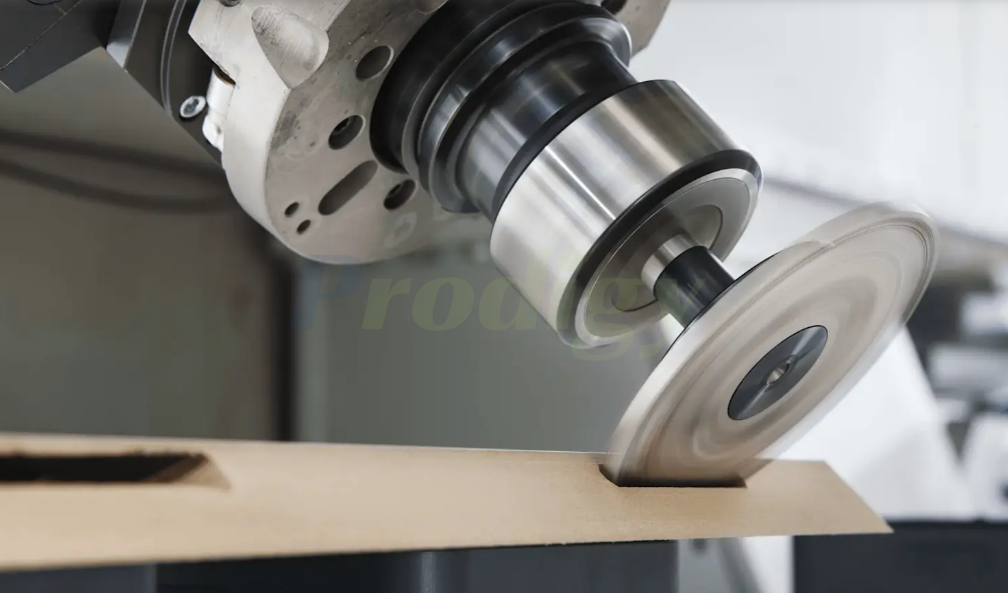

Aggregate type	Drilling (Foratura) / Milling (Fresatura) / Cutting (Taglio)	Drilling (Foratura) / Milling (Fresatura) / Cutting (Taglio)	Drilling (Foratura) / Milling (Fresatura) / Cutting (Taglio)
Axis Rotation	Endless(infinita)	0°/Fixed (0°/Fisso)	0-90° / 0-180°
Axis: motor model	Siemens / HSD	-	-
Axis: pneumatic rotation	No	No	Yes
Weight [kg]	25	25	25

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.

003-hsd_1 005-hsd_1 004-hsd_1 006-hsd_1 007-hsd_1
