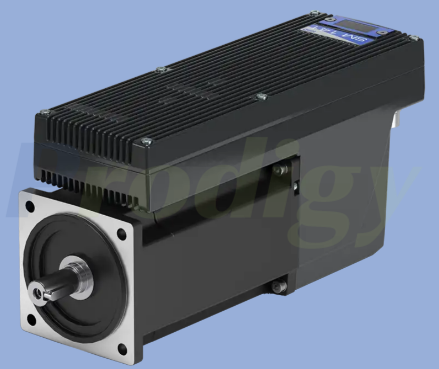

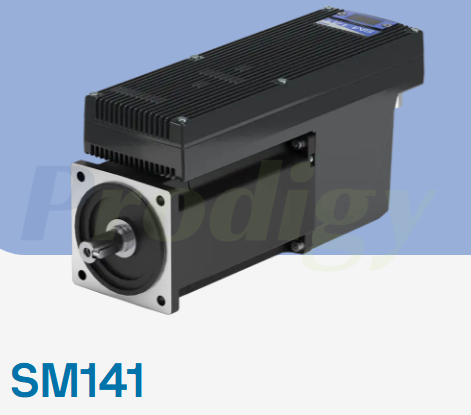

HSD Smart Motors SM Line : SM141

Smart Motors

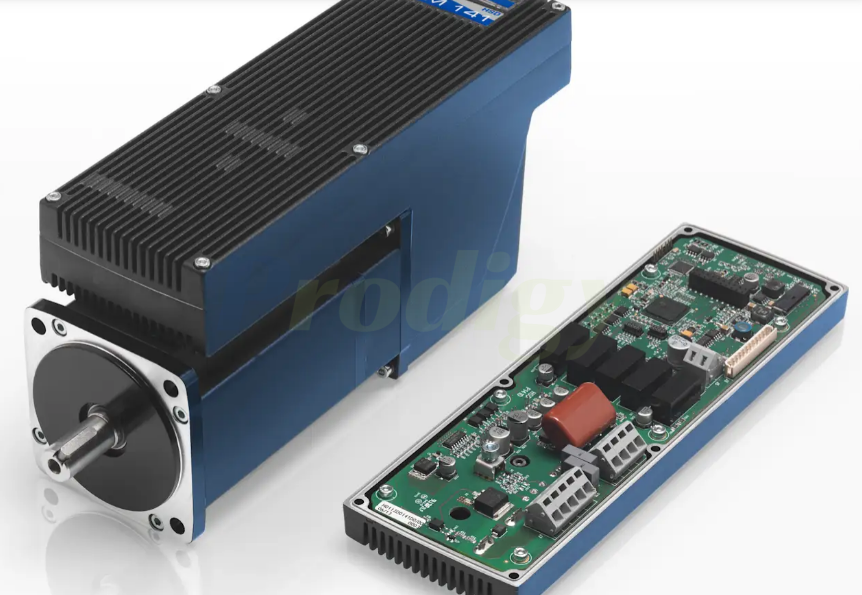

This product is a synchronous motor with integrated drive (servo-motor) for the general movements of parts of CNC machines, and is designed for applications on machines that work a variety of materials. It cannot work independently, but must be integrated in a machine or in partly completed machinery.
SM Line

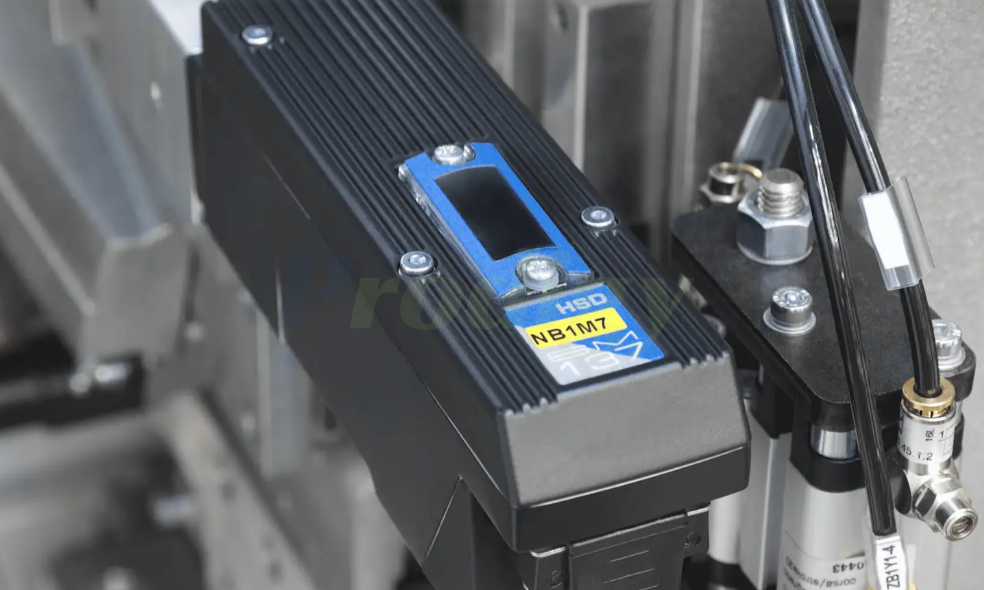

The SM Line smart motor range, dedicated to the handling of machine parts that process wood, composite materials, glass and stone, is characterised by its compactness and is totally integrated in the CNC machine.

Availability:

Quantity:



Inquire Add to Basket

Model:
SM141
Brand:
HSD

Product Description

005-SM

	SM141 - 350W	SM141 - 450W
Body dimension [mm]	□ 80 x 125	□ 80 x 125
Max Output Speed [rpm]	5000	5000
Nominal Output Torque S1 [Nm]	1.11	1.43
Power S1 [kW]	350	450
Rated voltage [V]	230AC	230AC
Logic voltage [V]	24	24
Gearbox RATIO	1	1
Fieldbus	Ethercat - Canopen	Ethercat - Canopen
Brake	Optional (Opzionale)	Optional (Opzionale)
Weight [kg]	4.5	4.5

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.
