HSD Smart Motors SM Line

Smart Motors

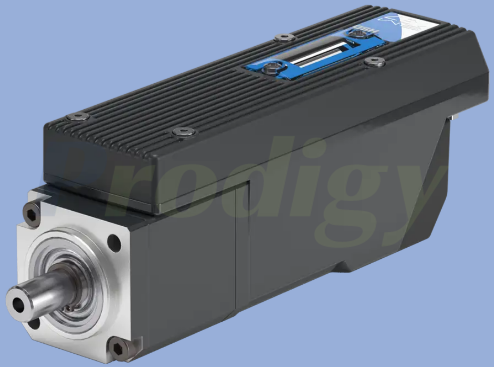

This product is a synchronous motor with integrated drive (servo-motor) for the general movements of parts of CNC machines, and is designed for applications on machines that work a variety of materials. It cannot work independently, but must be integrated in a machine or in partly completed machinery.
SM Line
The SM Line smart motor range, dedicated to the handling of machine parts that process wood, composite materials, glass and stone, is characterised by its compactness and is totally integrated in the CNC machine.

Availability:

Quantity:



Inquire Add to Basket

Model:
SM137
Brand:
HSD

Product Description

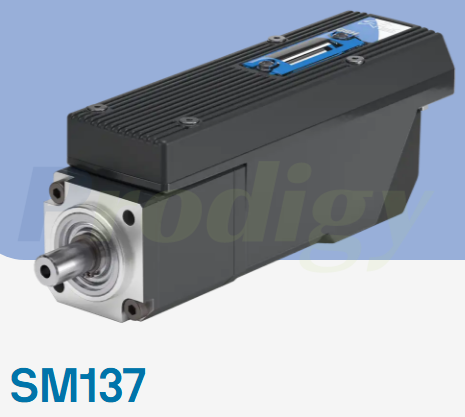

003-SM

Item	SM137 - 100W	SM137 - 100W	SM137 - 100W
Body dimension [mm]	□ 40 x 60	□ 40 x 60	□ 40 x 60
Max Output Speed [rpm]	800	625	200
Nominal Output Torque S1 [Nm]	1.5	2	6,2
Power S1 [kW]	100	100	100
Rated voltage [V]	24	24	24
Logic voltage [V]	24	24	24
Gearbox RATIO	1:6.25	1:8	1:25
Fieldbus	Ethercat - Canopen - RS485	Ethercat - Canopen - RS485	Ethercat - Canopen - RS485
Brake	No	No	No
Weight [kg]	1	1	1

Overview

002-hsd_1

The HST series represents the top-tier offering within HSD's 5-axis head product lineup. Engineered and built to deliver peak performance in positioning speed, accuracy, and robustness, these heads are typically deployed in intensive applications and metalworking, particularly in the aerospace sector.

They are also utilized in CNC machines operating within integrated die-casting plants, as they enable highly efficient cycle times while ensuring top-tier quality and precision in execution.
